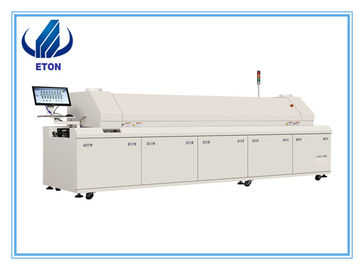

Reflow Soldering Oven Machine reliable , hot air reflow oven for led tube assembly

Reflow Soldering Oven Machine reliable , hot air reflow oven for led tube assembly
Reflow Soldering Oven Machine reliable , hot air reflow oven for led tube assembly

Large Image :  Reflow Soldering Oven Machine reliable , hot air reflow oven for led tube assembly

Product Details:

Place of Origin: Shenzhen,China
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: 8 zones

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD12000~15000USD per Unit
Packaging Details: Standard export wooden case package(Can do as customers' requirement)
Delivery Time: Within 15 days after receive the downpayment
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability: 30 UNIT per month
Detailed Product Description
Application:: 2018 New Low Consumption Soldering Reflow Oven SMT High Quality And High Vacuum Furnace Reflow Oven For PCB Mesh Speed: 0-1.8M/MIN
Temperature Accuracy: ±1℃ Heating Up Time: <25min
Apply Solder Paste Type: Lead-free Solder/Ordinary Solder Applicable Components Type: BGA,CSP Etc.single/double Sided
Power Comsumption: 120W/220AC 50HZ
High Light:

smt reflow soldering

,

reflow soldering machine


Product Description:

SMT LED machine,SMT LED pick and place machine,LED light production machine,LED light assembly machine



1.Features:





■ Adopting imported high temperature motors,speed by Inverter control,long-term use,quality and stability;



■ Built-in cooled,two cooling centers,excellent cooling effect;



■ Cooling gases forced discharged,air-conditioned environment,environmental protection and power saving;



■ Since temperature curve for testing features(3-channel temperature measurement system);



■ Configuration of network rail transfer system;



■ Cover the heating zones can be automatically opened,easy to maintain,and equipped with open end safety device;



Features:



1) Dimension: 4800*1200*1450(mm)

2) Starting total power: 45KW, Normal: 7KW

3) Controlled temperature zones : up 8 heating Zones, down 8 heating zones, 2 cooling zone

4) Heating length: 3000MM

5) Temp.Accuracy: ±1℃

6) PCB Temp.Deviation: ±2℃

7) Heat up time: <25min

8) Mesh speed: 0-1.8M/MIN

9) Mesh height: 900±20mm

10) Mesh width: 480 mm

11) PCB Size: W350 mm

12) Apply solder paste type: Lead-free solder/Ordinary solder;

13) Applicable components type: BGA,CSP etc.single/double sided;

14) Power protect: UPS;

15) Control Method: Full computer control;

16) Furnace using jacking cylinder;





No. Parts Materials Remark
1 Transport Motor Japanese Panasonic
2 HT Motor Taiwan
3 Solenoid Valve Taiwan YADAKE
4 Control System PLC SIEMENS
5 UPS (uninterruptible power supply) USA STK
6 Computer Great Wall Host Display
7 Relay JAPAN OMRON
8 Contactor CHINT
9 Air switch CHINT
10 Frequency converter Easydriver
11 SSR Non-contact switch American Crydom
12 Phase sequence protector CHINT
13 Heating wire Imported nickel wire winding
14 Tree color lamp China
15 Computer mainframe Great Wall
16 Rotary Switch CHINT
17 Emergency Switch CHINT
18 Mesh belt Stainless steel mesh belt



  1.
  2.
  3.
