Product Details:
Payment & Shipping Terms:
|
| Name: | Reflow Soldering Oven | Dimensions: | L4800*1350*1450MM |
|---|---|---|---|
| Net Weight: | 1600kg | PCB Size: | 50～650mm |
| Certification: | ISO,CE ISO CCC IPC,UL,ROHS CE ISO | Voltage: | 380V,380V/3 Phase |
| Usage: | PCB Soldering,Welding,automatic Conveying Convection Reflow Oven For SMT PCBA Production,reflow Soldering,led Soldering | Type: | Reflow Solder,SMT Reflow Oven Profiler Machine |
| Rated Duty Cycle: | 100% | Current: | 50/60Mhz |
| Warranty: | 1 Year | Temperature Range: | Room Temperature ~ 300 |
| Heating Zones: | 8 Zones | Application: | Pcb Soldering,SMT LED PCB Reflow Soldering,SMT LED PCB Welding,LED Light Makeing,SMT Line |
| High Light: | BGA Repair SMT Reflow Oven,High Speed SMT Reflow Oven,High Stability SMT Reflow Oven |
||
| Machine technical parameters | |
| Number of heating temperature zones | The top 8 small cycle heating area, the bottom 8 small cycle heating area. |
| Heating mode | Plane winding type heating on both sides of the generator, pressurized air duct, point to point frequency conversion motor heat exchange, frequency conversion motor drive |
| Length of heating zone | 3160MM |
|
Number of cooling zones
|
2+1 (natural air cooling system) |
| Length of cooling zone | 800MM |
| Transmission belt width | 650MM |
| Widening the range of chain guide rail | 50～250mm |
| PCB size | 50～350mm |
| PCB limits height | 25mm |
| Transmission direction | L→R (R→L) is optional |
| Transmittal mode | Mesh belt + chain + guide |
| Conveyance belt height | 900±20MM |
| PCB transport speed | 0～1.8m/min |
| PCB temperature differential deviation | ±2℃ |
| Temperature control accuracy | ±1-2℃(Static state) |
| Temperature control range | Room temperature ~ 300℃ can be set |
| Applicable solder type | Lead-free solder/Have lead solder |
| The temperature control mode | PID+SSR |
| Type of component used | CSP, BGA, μBGA, 0201CHIP and other single/double panel |
| Power outage protection | UPS and Delayed Shutdowns |
| Power supply | 3Φ,380V,50HZ |
| Initial power | 68KW |
| Operating power | 16KW |
| Heating up time | Approx.20min |
| Dimensions |
L4800*1350*1450MM
|
| Net weight | 1600kg |
| Temperature curve system | Three-channel on-line curve test, intelligent analysis software, display temperature and speed. |
| Body color | Whole computer white |

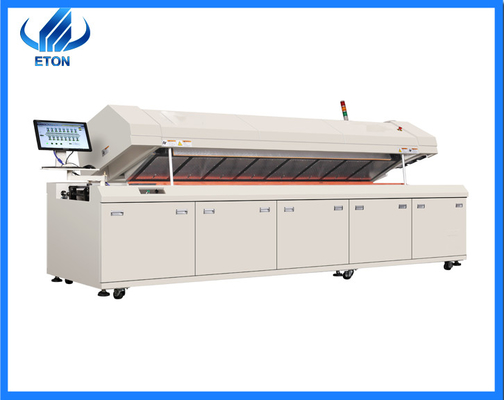

Reflow Oven--Machine Detarils
| Body part | |
| Airframe structure |
The latest streamlined housing design, using industrial flat through frame, 2mm thick steel plate Bent to make the shell, the body has six universal wheels at the bottom, and eight foot cups Starting positioning for placement (adjustable body level and height); |
| Front and back door structure | All are fully enclosed magnet handclasp removable structure to ensure the maximum operation and maintenance space |
| Open mode of upper furnace body | Open mode of upper furnace body, double cylinder jacking, double mechanical rod self-locking function, safe and reliable.It is divided into two sections: heating area and cooling area. |
| The tank structure | Double layer stainless steel air plate and stainless steel air nozzle. The inner tank is filled with American Cisil rock (120KG/ m3) to enhance the protection effect. |
| Top cover opening mode | Double cylinder jacking |
| Surface treatment | Antistatic spraying high temperature oven baking, beautiful and durable. |
| The heating part | |
| Number of heating zones | The upper eight temperature zones, the lower eight temperature zones independent temperature control, can be opened separately temperature zones. The heating can be divided to reduce the starting power. |
| Adjacent temperature zone can pull temperature difference | 100℃, can correspond to the highest standard of lead-free process. |
| Heating up time | Starting time from room temperature to temperature equilibrium: about 20min |
| Heat up the order | Heating from the middle to both sides one by one can save one third of energy or time. Compared with heating from beginning to end one by one, there is a large heat loss due to exhaust vents at both ends |
| Limit the height of components on the PCB | 25MM |
| Length of heating ZONE | 3160MM |
| Temperature adjustment range | 0～300℃ |
| Temperature control precision of heating zone | ±1-2℃(static) |
| Transverse temperature deviation of the substrate | ±2℃ |
| ★ Temperature climbing ability | 3℃/S |
| ★ Air duct structure | Adopt the world's leading small circulation heating mode, the upper and lower independent hot air small circulation system, temperature uniformity, high thermal compensation efficiency |
| Temperature zone independent shutdown function | Each temperature zone is separately controlled by the computer PID, the user can selectively heat the temperature zone, which is conducive to the formation of temperature difference between the upper and lower PCB board |
| No load to full load (or reverse) thermal equilibrium recovery time |
≦0.5 seconds, main factors: coil type heater, rod type or plate type heater It takes more than 60 seconds |
| Hot air motor | High quality high temperature resistant motor, good structure heat dissipation, direct connection impeller, speed motor 2800RPM, can provide sufficient hot air flow |
| Heating components | The heating wire adopts Taiwan Taichan brand, the heating wire is completely naked in the air and the air flow in the air duct fully contact, producing the best heat exchange to reduce the thermal inertia impact. |

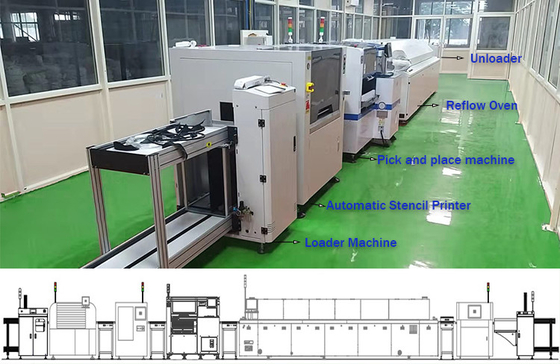

Application:SMT line Solution:LED Light production Line
LED LIGHTING PRODUTION LINE
