smt pick and place machine,
smt pick and place equipment

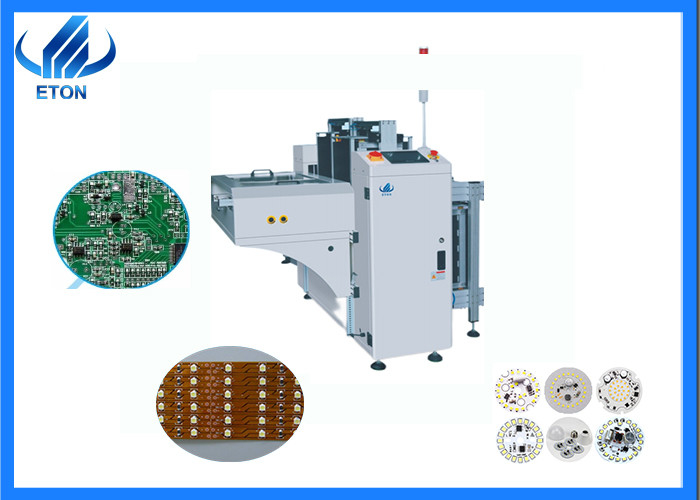

HLD-250 send board machine
2: Technical parameters
|Item||HLD-250 send board machine|
|Frame||Special aluminum profile guide rail and special thousand bird type plastic chain|
|Lift||90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down|
|Transmission motor||Taiwan 15W fixed speed motor|
|Structure||Pneumatic clamp structure|
|Maximum size of PCB||L330*W250|
|Direction||Right to left / left to right|
|Lift platform pitch selection||10,20,30,40|
|Controller||Mitsubishi PLC programmable controller|
|Function||Automatically send board|
|Operation control panel||Display control true color touch screen|
|Pneumatic Components||Push plate cylinder position, adjusted by screw|
|power supply||220V 50HZ|
|No. of Full load storage board||50 PCS|
|Electric control box||1 set|
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
