Send board machine

Send board machine
Send board machine

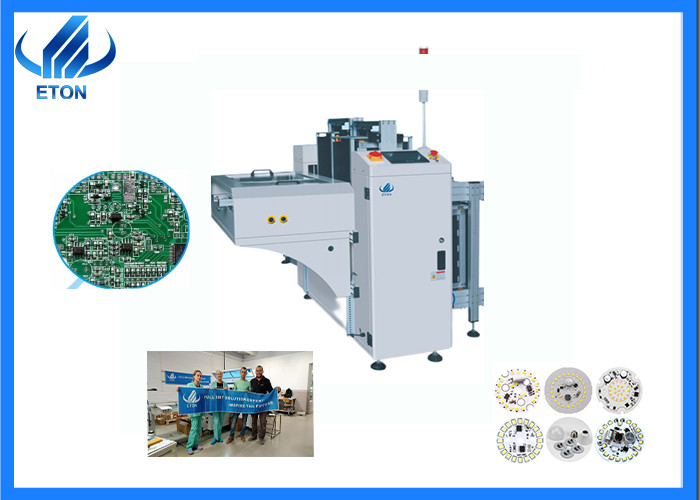

Large Image :  Send board machine

Product Details:

Place of Origin: China
Brand Name: Eton
Certification: CE CCC ISO
Model Number: HLD-LD330M send board machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Wooden box package
Delivery Time: 30 work days
Payment Terms: T/T
Detailed Product Description
High Light:

smt pick and place machine

,

smt pick and place equipment

                          HLD-LD330M send board machine

                                                      Send board machine 0

2: Technical parameters



Item HLD-LD330M send board machine
Dimension L700*W500*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Transmission motor Taiwan 15W fixed speed motor
Structure Pneumatic clamp structure, Special anti-sliding structure with anti-card board
Magazine Specifications L460*W400*565mm(Can place two magazines)
Maximum size of PCB L460*W330
Direction Right to left / left to right
Lift platform pitch selection 10,20,30,40
Transmission height H=920±30
Controller Mitsubishi PLC programmable controller
Function Automatic empty box alarm function
Automatically send board
Operation control panel Display control true color touch screen
power supply 220V 50HZ
No. of Full load storage board 50 PCS
Gas source 0.4-0.6MPa
Professional electric control box 1 set



Our services

Before buying machine

1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!



After buying machine

1) 1 year free warranty

2) Visit customers regularly and gather information.

3) Provide latest information about technology and equipment.



Ship and package

1) shipping: Within 30 days after payment

2) Packaging: Standard export package or customized package



Our attitude

Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
