Product Details:
Payment & Shipping Terms:
|
| Application:: | LED Light Production | Applicable Components:: | LED Chip,capacitors,resistors Etc. |
|---|---|---|---|
| NO. Of Head:: | 34 PCS | Capacity Speed:: | 150000CPH |
| PCB Size:: | Max:330*1200mm Min:50*50mm | Repeat Precision:: | ±0.02mm |
| Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Feeder Type:: | Electronic Feeder(double Motor,more Precision) |
| Name:: | Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter | No. Of Feeder:: | 34 PCS |
| High Light: | led bulb assembly machine,smt placement machine |
||
1 .Features :
The HT-XF (The fifth generation high-speed LED pick and place machine of ETON ) is hot-selling . "ETON Automation " brand was awarded "Shenzhen TOP brand " high-tech enterprises .
♦ Auto-optimization feature after coordinates generated
♦ Electronic feeder feeding system
♦ The Global fastest machine ,speed reach 150000CPH
♦ It can produce different kinds of LED light ,display etc .
♦ 34 heads ,more effective .part A and Part B work separately .

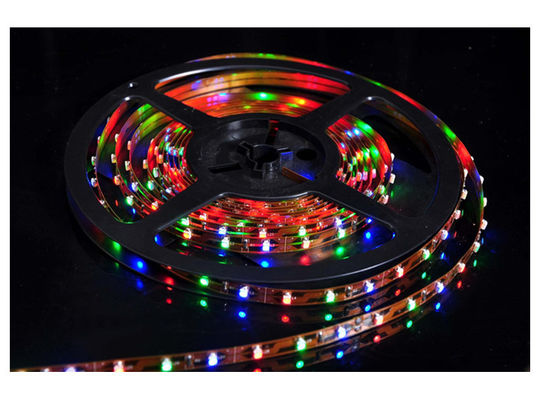

Apply to the aluminum PCB ,LED hard light board and LED soft flexible lamp strip etc .
Apply to tube ,bulb ,strip ,lamp ,panel ,ceiling light ,down light ,screen ,street light ,flood light ,display etc .
Apply to LED chip ,capacitors ,resistors ,shaped components etc . (intelligent ,use widely )
34 heads altogether ,34 feeders ,partA or partB work separatly . Easy to operate .
Patent Number : ZL 2011 2 0237740.9/ZL 2011 2 0334606.0
ZL 2012 2 0178869.1/ZL 2012 2 0415505.0
ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0
2 .Technical Parameter:
| Dimension | 2700mm(L) /1900mm(W) /1400mm(H) |
| PCB Length Width | Max . :330mm*1200mm Min . :50mm*50mm(W*L) |
| PCB Thickness | 0.5~5mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip ,IC ,capacitors ,resistors ,IC ,bridge etc . |
| Power Comsumption | 5KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 150000-170000CPH |
Company Profile :
The Global Largest Production Capacity Supplier of LED Production Line
Professional Efficient Technology Development Innovation
Company Five Level Management Policy: sincere business,focus on
R&D,manufacture by heart,considerate service, customer trust.
Eton Purpose : To create value for customers , creating benefits for society .
Eton Mission : Professional ,Excellent technology ,Share the results .
Package : Standard export package (Package as per customer 's requirement )
Shipping : Shenzhen port within 15 days after payment
Excellent After-sale Service .
Upgrade the software will be free for whole lifetime of machine .
Visit customer regularly and gather information .
Professional is our truth . Let 's light up your business .
