Payment & Shipping Terms:
|Application::||Economy Middle Speed 8 Heads ETON Led Pick And Place Machine PCB Pick And Place Machine Mounting Machine E6T||Applicable Components::||LED Chip,IC,capacitors,resistors,shaped Components Etc.|
|NO. Of Head::||8 PCS||Capacity Speed::||35000CPH|
|PCB Size::||Max:350*1200mm Min:50*50mm||Repeat Precision::||±0.02mm|

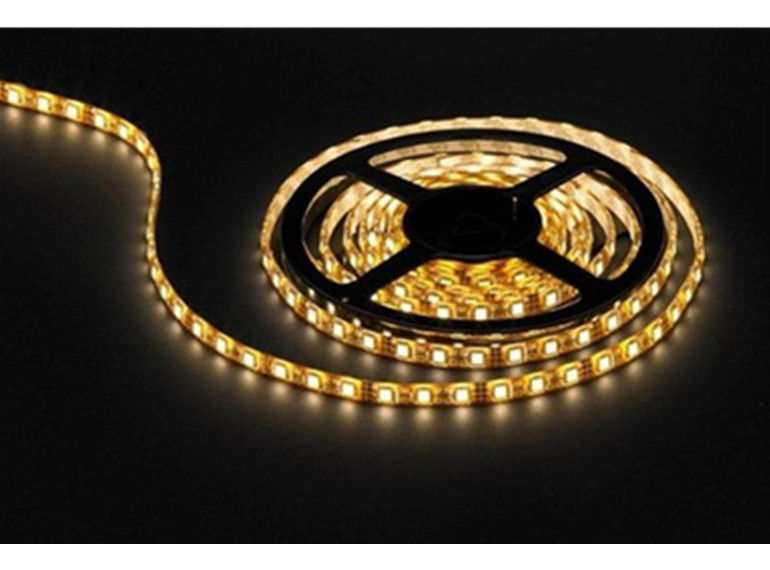

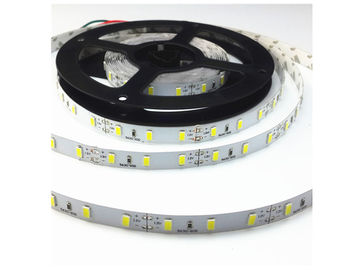

|Apply To::||LED Light Making,(SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc.||Feeder Type::||Electronic Feeder(double Motor,more Precision)|
|Name::||Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter||No. Of Feeder::||20 PCS|
pcb mounting machine,
smt chip mounter
1 .Company Information
ETON has launched its new Middle-speed SMT Pick and Place Machine, Equipped with a newly developed parallel 8 nozzle head, the ETON SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 20~30%. The ETON Pick and Place Machine is robotic assembly machine for mounting electronic components on a " PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle, ETON Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.
2. FRQ :
Intelligent PC Software, could support all kinds of PCB design software, such as rigid PCB, Flexible PCB, FPCB. aluminum PCB etc.
The software introduce
1.lifetime free upgrade,and operate more convenience and easy.
2.Support different kinds of PCB design software in the world
3.Automatic identify mark,any shape type,accuracy and quick
4.Support any multiple PCB set
5.Vacuum detection,automatically dispose and make up if picking fail or pick misaligned
6.Break point continue from any where
3 . Technical Parameter :
|Specifications||ETON SMT Pick and Place Machine HT-E6T-1200|
|Number of Spindles||8 heads|
|Placement Speed||35,000 CPH(Optimum)|
|Placement Accuracy||±50μm+3σ (Based on the Standard Chips)|
|Component Range||Chip 0402 ~30mm|
|Board Dimension(mm)||50(L) x 50(W)~500(L) x350(W)|
|Feeder Capacity||8mm,12mm,16mm,24mm option,according to client products|
|Power||AC 220 50/60Hz,single Phase|
|Air Consumption||0.5 ~ 0.6MPa(5 ~ 6kgf/cm2)|
|External Dimension(mm)||2550(L) x 1650(D) x 1600(H)|
4 .Our Services
Excellent Service .
* Inquiry and consulting support.
* Sample machine testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
