Length: | 2700MM | Width: | 1900MM |
---|---|---|---|
Height: | 1530MM | Weight: | 1300KG |
Power: | 220AC 50Hz | Power Consumption: | 5KW |
Highlight: | pcb mounting machine,smt chip mounter |

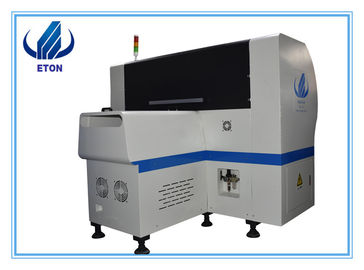

SMT Pick and palce machine LED lamp chip mounter High speed chip shooter HT-XF HT-XF/Technical Parameter |
|
Length | 2700mm |
Width | 1900mm |
Height | 1400mm |
Total Weight | 1300KG |
PCB Length Width | Max.:300mm*1200mm Min.:60mm*300mm |
PCB Thickness | 0.5~5mm |
PCB Clamping | Adjustable Pneumatic |
Mounting Mode | Group to take and group to mount |
Software | Windows 7 |
Display | LED Monitor |
Input Device | Keyboard,Mouse |
No. of Camera | 5 sets of imported camera/Vision alignment,Mark correction |
Mounting Precision | ±0.02mm Chip |
Mounting Height | 15mm±2 |
Mounting Speed | 150000~170000CPH |
Components | LED 3014/3020/3528/5050 etc. |
Components Space | 0.2mm |
No. of Feeders | 34PCS |
Power | 220AC 50HZ |
Power Comsumption | 5KW |
Air Force | 0.5mpa |
Operating Environment | 23℃±3℃ |
Conveyor Transmission | Max Length:1.2m, Belt drive |
Transmission Speed | >500mm/sec. |
Transmission Direction | single (left→right or right→left) |
Transmission Mode | Online Drive |
Position Mode | Optical |
Air Pressure | >5.0kg/cm2 |
Air Consumption | <100L/min. |
Electrical Control | Research and Develop Independently by ETON |
Motion Control Card Module | Research and Develop Independently by ETON |
X,Y Axies Driving | Servo motor control for X,Y,Z axies |
Feeding Way | Electrical Feeder |
Instruction: The Led placement machine is for double module, consisting of two modules interact to mount around, each module can be installed nozzle17, the minimum distance is 14mm between two adjacent nozzle. 14mm above can be freely adjusted, when the puzzle spacing of less than 14mm can be separated by one or more of the welding position adjustment nozzle spacing to interact mount.
