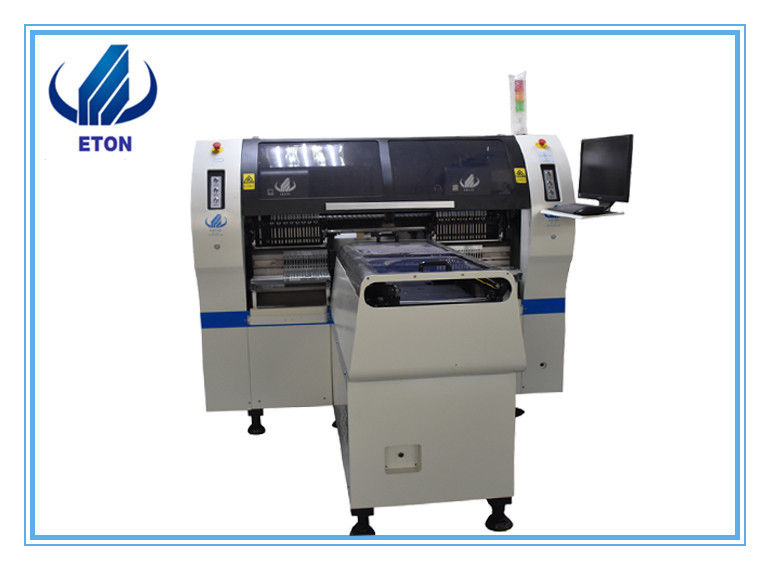

HT-XF High Speed LED SMT Pcb Component Mounting Machine Automatic 220AC 50Hz

HT-XF High Speed LED SMT Pcb Component Mounting Machine Automatic 220AC 50Hz
HT-XF High Speed LED SMT Pcb Component Mounting Machine Automatic 220AC 50Hz

Large Image :  HT-XF High Speed LED SMT Pcb Component Mounting Machine Automatic 220AC 50Hz

Product Details:
Place of Origin: China
Brand Name: Eton
Certification: CE CCC ISO
Model Number: HT-XF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 72000-80000
Packaging Details: Wooden box package
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 50 sets
Detailed Product Description
Length: 2700MM Width: 1900MM
Height: 1530MM Weight: 1300KG
Power: 220AC 50Hz Power Consumption: 5KW
High Light:

surface mount machine

,

smt chip mounter

High speed pick and place machine HT-XF LED tube light making machine

HT-XF/Technical Parameter

Length 2700mm
Width 1900mm
Height 1400mm
Total Weight 1300KG
PCB Length Width Max.:300mm*1200mm Min.:60mm*300mm
PCB Thickness 0.5~5mm
PCB Clamping Adjustable Pneumatic
Mounting Mode Group to take and group to mount
Software Windows 7
Display LED Monitor
Input Device Keyboard,Mouse
No. of Camera 5 sets of imported camera/Vision alignment,Mark correction
Mounting Precision ±0.02mm Chip
Mounting Height 15mm±2
Mounting Speed 150000~170000CPH
Components LED 3014/3020/3528/5050 etc.
Components Space 0.2mm
No. of Feeders 34PCS
Power 220AC 50HZ
Power Comsumption 5KW
Air Force 0.5mpa
Operating Environment 23±3
Conveyor Transmission Max Length:1.2m, Belt drive
Transmission Speed >500mm/sec.
Transmission Direction single (left→right or right→left)
Transmission Mode Online Drive
Position Mode Optical
Air Pressure >5.0kg/cm2
Air Consumption <100L/min.
Electrical Control Research and Develop Independently by ETON
Motion Control Card Module Research and Develop Independently by ETON
X,Y Axies Driving Servo motor control for X,Y,Z axies
Feeding Way Electrical Feeder



Instruction: The Led placement machine is for double module, consisting of two modules interact to mount around, each module can be installed nozzle17, the minimum distance is 14mm between two adjacent nozzle. 14mm above can be freely adjusted, when the puzzle spacing of less than 14mm can be separated by one or more of the welding position adjustment nozzle spacing to interact mount.

Specific technical parameter



Please find the video link: https://www.youtube.com/channel/UCma0DIrbb3DrvucSX9pea7w



Our services

Before buying machine

1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!



After buying machine

1) 1 year free warranty

2) Visit customers regularly and gather information.

3) Provide latest information about technology and equipment.



Ship and package

1) shipping: Within 30 days after payment

2) Packaging: Standard export package or customized package



Our attitude

Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.



Company information

Shenzhen Eton Automation Equipment co., LTD. is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine. And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation. The 2018newest items are hot selling.


HT-XF High Speed LED SMT Pcb Component Mounting Machine Automatic 220AC 50Hz 0



Company five level managerment policy: sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve;Guangdong Province 24 hours.
Eton mission: professional,excellent technology,sharing the results.
Eton goal: to create a national brand,build international Chinese enterprise.
Eton purpose:to create value for customers,creating benefits for society.







Let’s light up your business!

We are very experienced in the establishment of led production line. If you are interested in our products or want to enter the LED business, Please feel free to contact me.
