8kw LED PCB Assembly Machine , HT-E5D High Speed Pick And Place Machine 380AC 50HZ

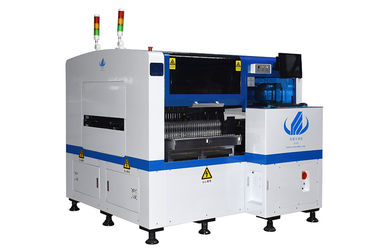

Large Image :  8kw LED PCB Assembly Machine , HT-E5D High Speed Pick And Place Machine 380AC 50HZ

Product Details:

Place of Origin: China
Brand Name: Eton
Certification: CE CCC ISO
Model Number: HT-E5D

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 75000-80000
Packaging Details: Wooden box package
Delivery Time: 30 work days
Payment Terms: T/T
Detailed Product Description
Length: 1650MM Width: 2000MM
Heigth: 1550MM Weight: 2800kg
Power: 380AC 50Hz Components Space: 0.2mm
High Light:

surface mount machine


smt chip mounter


SMT pick and place machine, Led chip shooter, SMT machine, Led bulb manufacturing machine, Led light production line, PCB manufacturing machine,Led lamp making machine, etc.
Product description

  • HT-E5D SMT pick and place machine is for led, capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc .
  • HT-E5D Multi-functional module pick and place machine for LED, capacitors, resistors and so on. Connecting in series and placing the same PCB on line. And it’s identified the correct position by camera. So it’s high precision and good stability.

Specific technical parameter

Length*Width*Height 1650mm*2000mm *1550mm
Total Weight 2800kg
PCB Length Width Max:500*300mm Min:100*100mm
Mounting Precision ±0.02mm chip
Mounting Speed 80000 CPH(optimum)
Components Speed 0.2mm
Power 380AC 50HZ
Power Consumption 8kw
No. of feeders 60PCS
No. of nozzles 16 nozzles

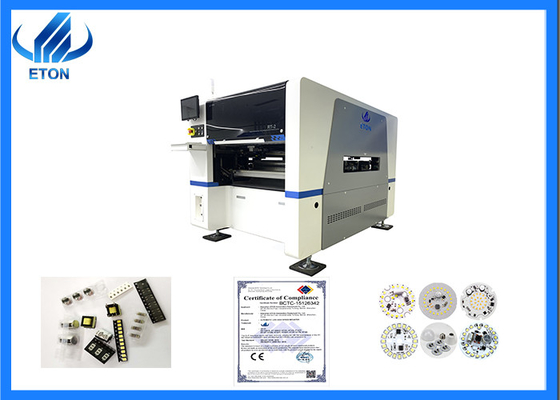

8kw LED PCB Assembly Machine , HT-E5D High Speed Pick And Place Machine 380AC 50HZ 0

Our services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.

Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package

Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
