Name: Pick And Place Machine Module: HT-F9
Capacity: 200000 Cph No.of Feeders: 68 Pcs
No.of Nozzles: 68 Pcs Apply: Led Smt Line
Warranty: One Year Service: Free Install And Traning
High Light:

surface mount machine


smt chip mounter

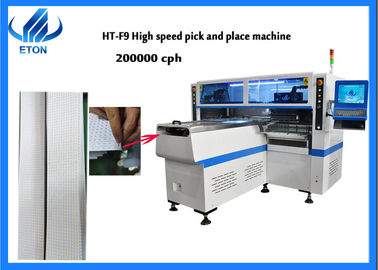

F9 Pick and place machine for panel light with 200000 CPH


Basic process of surface mounting


The basic process of the placement process of the placement machine is divided into: solder paste printing, SMT placement (by hand and machine), intermediate inspection, reflow soldering, post-furnace inspection, performance test, aging test (some are not required), packaging.


SMT Line solution for LED Tube or Panel light


As the manufacturer of smt machines, ETON support whole smt machines for different led lighting and electrical board(Such as Bulb, DOB, LENS, Strip, Down-light, Display, Power driver,etc). There is the line of tube ,strip or panel light:


Machine Module Function
Pick and place machine HT-F9 Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip
Semiautomatic Stencil printer ET-S1200 Print the solder paste on the corresponding PCB
Reflow oven ET-R8 Heating and welding the SMD electronic components to the PCB board
Conveyor ET-C1400 In the SMT line, it is for transmission and buffering PCB


Parameter of HT-F9 pick and place machine


HT-F9 Pick and place machine parameter
Dimension(L*W*H) 2700*2120*1550 mm
PCB Length Width Max:1200*330 mm
Min:80*330 mm
Mounting height <13 mm
Mounting Speed 200000 cph
Components LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers
No.of nozzles 68 pcs
No.of feeder station 68 pcs
Sofware R&D independently


Parameter of ET-S1200 Stencil printer


ET-S1200 Stencil Printer Parameter
Printing area 1200*250 mm
Plate Area 1250*300 mm
Stencil Frame Size 470*370~1300*550 mm(L*W)
Scraper Speed 0-100 mm/sec


Parameter of ET-C1400 conveyor


ET-C1400 conveyor parameter
Steel frame structure, rail length L=1400 mm
Width adjustment range 50~390 mm
Transmission Height 900-940 mm
Transmission 7mm flat belt conveyor
Speed Adjustable from 0.5-9m/min
Motor Set of stepper motor
Control Industrial control panel


Parameter of ET-R8 reflow oven


ET-R8 Reflow oven parameter
Number of heating zones Up 8/Bottom 8
Number of cooling zones Up1/ Bottom 1
Length of heating zones 3000 mm
Components high 50 mm
Temp. control method PLC&PC
Warming time About 20 mins
Dimension 4600*1200*1490 mm


F9 PCB Pick And Place Machine 200000 CPH One Year Warranty For Panel Light 0

ETON company


ETON set up in 2011, famous with high speed machine. In 2020, we reach the new high speed machine HT-F9. More faster. Besides, we also have other modules suitable for different products.


ETON services


We provide one year warranty, during warranty, any parts need to prepared and replaced will be free .

Also we will sent our engineer to your factory to install and training, it is freely.

We provide life time software upgrate.
