Large Tube Shaped Components Led Pick And Place Machine 200000 Cph Capacity

Large Tube Shaped Components Led Pick And Place Machine 200000 Cph Capacity
Large Tube Shaped Components Led Pick And Place Machine 200000 Cph Capacity

Large Image :  Large Tube Shaped Components Led Pick And Place Machine 200000 Cph Capacity

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-F9

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 30 days after pay
Payment Terms: L/C, T/T
Supply Ability: 50 set/month
Detailed Product Description
Name: Pick And Place Machine Module: HT-F9
Apply: Smt Line Suitable For: Tube.panel, Strip Light
Capacity: 200000 Cph No.of Nozzles: 68 Pcs
No.of Heads: 68 Pcs Service: Free Install And Traning
High Light:

surface mount machine

,

smt chip mounter

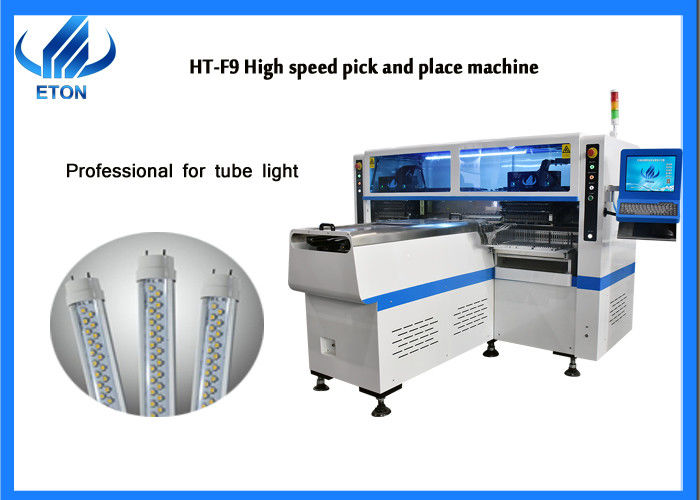

F9 Pick and place machine for led light with 200000 CPH



Pick and place machine HT-F9



HT-F9 is the new supper high-speed pick and place machine. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip

Dimension(L*W*H): 2700*2120*1550 mm

PCB Length Width: Max:1200*330 mm, Min:80*330 mm

No.of nozzles: 68 pcs

No.of feeder station: 68 pcs

Mounting Speed: 200000 cph

Components: LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers



SMT Line



For produce led light, there are not only pick and place machine, but also need prepare other smt machines, like the conveyor, stencil printer, reflow oven.

For more clients convenient, we support whole line smt machines with factory price and good quality.



Function of pick and place



Put the printed FPC on the jig and transfer it to the placement machine through the automatic board feeder for placement.

The program of the placement machine is prepared in advance. When the machine recognizes that there is a board, it will automatically pick up the material for placement. The first board to be mounted should be inspected for the first piece, mainly to check the specifications of the components, the placement position, the polarity of the components, the presence or absence of missing stickers, multiple stickers, and whether the printing of solder paste is suitable.

As long as there is no problem with the mounting of the first board, the subsequent production will be very stable.

Large Tube Shaped Components Led Pick And Place Machine 200000 Cph Capacity 0

Clients



ETON pick and place machine exported more than 20 countries, like the India, Vietnam, Korea, Germany, Turkey, Egpyt,etc. We have office in India and Turkey. Support free install and traning.



Contact us



If you want to have a cooperate with us , please contact Joy:+8613590151025
