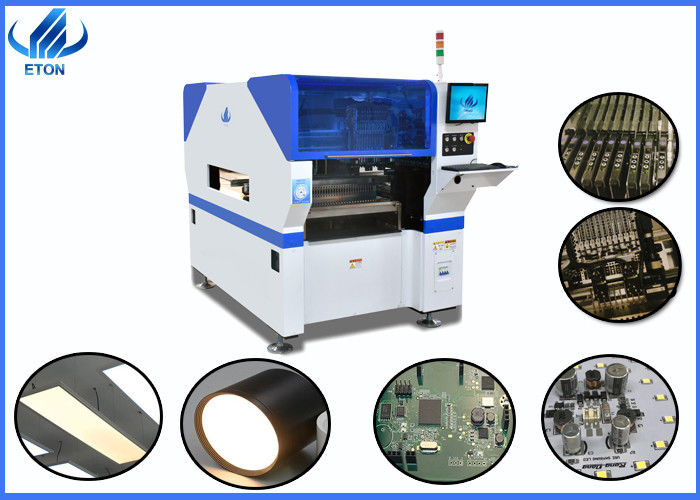

35000CPH CCC PCB Pick And Place Machine PCB Assembly Line

35000CPH CCC PCB Pick And Place Machine PCB Assembly Line
35000CPH CCC PCB Pick And Place Machine PCB Assembly Line

Large Image :  35000CPH CCC PCB Pick And Place Machine PCB Assembly Line

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Supply Ability: 50 PCS per month
Detailed Product Description
Dimension: 1200*1930*1500mm Warranty: One Year
Head: 10 PCS Feeder Station: 32 PCS
Camera: 2 PCS Clamping: Electric Clamping
High Light:

35000CPH PCB Pick And Place Machine


CCC PCB Pick And Place Machine


SIRA PCB Assembly Line Machine

PCB Pick And Place Machine high efficiency good stable with PCB Assembly Line


Advantages of RT series design

♕Suitable for mounting high components. Because during the high-component mounting process, if the PCB is moving, the mounted components are prone to displacement

♕Products suitable for mounting small boards, because the PCB board is fixed after entering the board, if it is clamped again, it will vibrate other mounted components.


Machine information

  • The machine is single module linear motor multifunctional pick and place machine,total 10 head.
  • Its high precision,apply to LED chip,resistor,capacitor,IC,shaped components etc.
  • The mounting speed of RT-1 is 30000 CPH.


Main parameter

Technical parameter
Dimension 1200*1930*1500mm
PCB size



PCB clamping Electric clamping
Mounting precision ±0.04mm
Mounting element height ≤22mm
Mounting speed 30000-35000CPH
Feeding way Electric feeder with double motor
No.of feeders station 32 PCS
No.of nozzles 10 PCS


Exclusive patented technology

  • Electronic feeder feeding system
  • Vision alignment flight identification,Mark correction
  • Auto-optimization after coordinates generated,etc.

Mounting mode


▲The mounting mode of RT-1 is group picking and separate placing,separate picking and separate placing.

▲Multi-function machines are mainly used in a variety of products, such as bulbs,flexible light strips, lamp tubes, panel lights, display screens, etc.

▲As shown in the figure below, the bulbs and the panel lamp beads are generally arranged in a ring, with various angles. The multifunctional machine has the function of group picking and splitting. Each placement head is relatively independent, and multiple lamp beads can be mounted back and forth.


35000CPH CCC PCB Pick And Place Machine PCB Assembly Line 0


Product application examples


RT-1 can mount products such as bulbs, drivers, downlights, street lights, circuit boards, DOB.


35000CPH CCC PCB Pick And Place Machine PCB Assembly Line 1


Company Profile

Shenzhen ETON Automation Equipment Co.,LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.And we have our own industrial park, which can further standardize and streamline the production process.


35000CPH CCC PCB Pick And Place Machine PCB Assembly Line 2

35000CPH CCC PCB Pick And Place Machine PCB Assembly Line 3


Actual capacity

  1. The optimal capacity of RT-1 is 30000-35000 CPH.
  2. Factors that affect the actual production capacity: the time of entering and exiting the board, the size of the board, the number of heads used, the type of components, the number of components, etc.

Operate system

The systems used by our machines are all independently developed,and easy to operate,usually 3 to 5 days training of operating is enough.


System Windows 7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard,Mouse



After-sales service&payment.

35000CPH CCC PCB Pick And Place Machine PCB Assembly Line 4




Q:what is your time of delivery?

A:Within 30 days after receiving the deposit


Q:What is your shipping package?

A:We use vacuum packaging and wooden box packaging


Q:What after-sale service do you have?

A:1. The warranty period is one year

    2. Free installation and training
    3.24 hours after-sales service


Q:What are your payment methods and shipping methods?

A:Payment method:T/T.  Shipping method:We support sea, land and air transportation



If you are interested in our products or want to enter the LED business, Please feel free to contact me.
