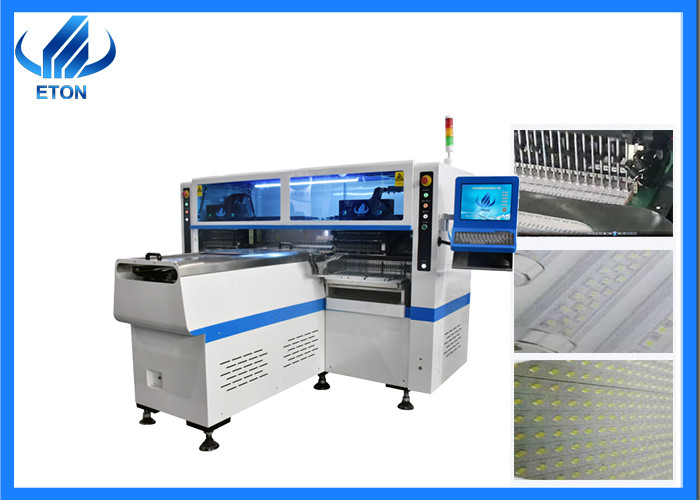

250000CPH Smt Line Equipment Fastest Pick And Place Machine With 68 Heads

large.img.alt
small.img.alt

Large Image :  250000CPH Smt Line Equipment Fastest Pick And Place Machine With 68 Heads

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Length* Width* Height: 2700mm*2300mm *1550mm Software: R&D Independently
No. Of Feeders Station: 68PCS Mounting Speed: 200000-250000CPH
XYZ Axis Drive Way: High-end Magnetic Linear Motor + Servo Motor Mounting Precision: +0.02mm( Repeat Precision)
No. Of Nozzles: 68PCS Feeding Way: Electric Feeder With Double Motor
High Light:

250000CPH Smt Line Equipment

,

250000CPH Fastest Pick And Place Machine

,

200000CPH Smt Line Equipment

smt line equipment LED light making ultra-speed pick and place machine with 68 heads



Introduction



Pick and place machine: also known as "mounting machine", "Surface Mount System" (Surface Mount System), in the production line, it is configured after the dispenser or screen printing machine, by moving the placement head to mount the surface A device where components are accurately placed on PCB pads.



Features



Exclusive Exclusive patent: group to take and group to mount
Intelligent Automatic optimization function and non-stop automatic refueling function
High efficiency 68 heads, dual arm four module, Can produce 4 different materials at the same time



Technical parameter



HT-F9 ultra high-speed pick and place machine
Dimension Length* Width* Height 2700mm*2300mm *1550mm
Total weight 1700kg
PCB Size Max:1200*330mm Min:100*100mm
Thickness 0.5-5mm
Clamping Adjustable pressure pneumatic
  Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 5PCS(Digital camera)
  Vision alignment, Mark correction
  Mounting precision +0.02mm( repeat precision)
  Mounting speed 200000-250000CPH
  Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
  No. of feeders station 68PCS
  No. of nozzles 68PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor





250000CPH Smt Line Equipment Fastest Pick And Place Machine With 68 Heads 0

250000CPH Smt Line Equipment Fastest Pick And Place Machine With 68 Heads 1

Application



It can be applied to the electronics industry, LED industry, power drive industry, automotive industry, household appliances industry, etc.



What equipment is needed for the production line?



250000CPH Smt Line Equipment Fastest Pick And Place Machine With 68 Heads 2

FAQ



Do you have any customers in India? How many machines are there in India?

Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.

Can I visit the production site of your machines in India?

I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.

Does the price include the spare parts(feeder and nozzle)?

Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.

What is your machines quality?

We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
