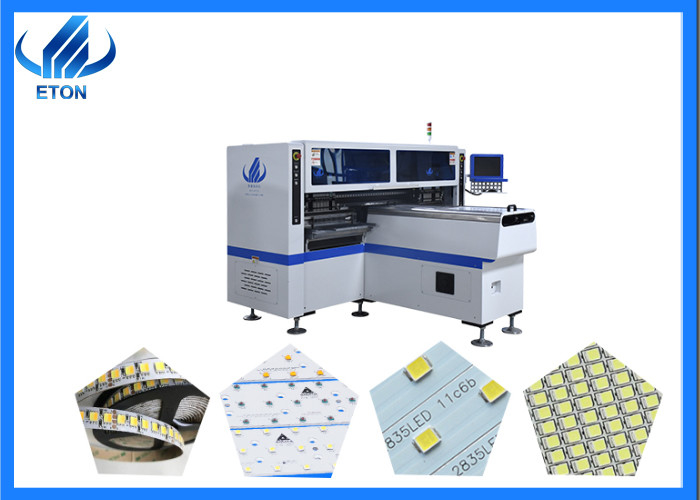

High Speed 34 Heads Fastest Pick And Place Machine 180000CPH

large.img.alt
large.img.alt

Large Image :  High Speed 34 Heads Fastest Pick And Place Machine 180000CPH

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F7S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Item: HT-F7S Pick And Place Machine Length* Width* Height: 2700mm*2450mm *1530mm
PCB Size: Max:1200*330mm Min:50*50mm No. Of Nozzles: 34 Pcs
Mounting Speed: 150000-180000CPH Components: LED3014/3020/3528/5050, Capacitors, Resistor, Bridge Rectifiers, Etc
High Light:

34 Heads Fastest Pick And Place Machine

,

180000CPH Fastest Pick And Place Machine

,

180000CPH led pick and place machine

High Speed 34 Heads Fastest Pick And Place Machine 180000CPH



Introduction



is a high speed pick and place machine of ETON company. It’s mounting speed is reach 150000-180000 CPH, can produce different types of LED lights ,such as tube, flexible strip, panel, etc.



Specification



Length* Width* Height 2700mm*2450mm *1530mm
Total weight 1400kg
PCB Size Max:1200*330mm Min:50*50mm
No. of camera 5PCS(Digital camera)
Mounting speed 150000-180000CPH
No. of nozzles 34PCS
No. of feeders station 68PCS
Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc



Features



  1. Special LED pick and place machine

Apply to the 0.6m,0.9m.102mLED rigid PCB and 0.5m,1m flexible strip.

  1. Visual system

5 sets of imported camera. The function is vision alignment and mark correction. The imported camera can accurately identify the exact position of PCB board and the position of components and board. The overlooking camera searches for the target on the circuit board (as a benchmark) in order to place the circuit board in the correct position before assembly, and the overlooking camera is used to detect elements in the fixed position. Maximize Time Saving and Improve Production Efficiency.

  1. High Speed and High Precision

This special mounting machine has a speed of 150000~170000 CPH. Can save space, labor costs, management costs. 34 heads, It has a set of vision recognition system, which can process the absorbed components into the required mounting angle through image recognition, and realize high precision mounting, with an accuracy of 0.02mm.



High Speed 34 Heads Fastest Pick And Place Machine 180000CPH 0



About us



High Speed 34 Heads Fastest Pick And Place Machine 180000CPH 1



Package and delivery



Our mode of transportation including water, land and air transportation. You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

High Speed 34 Heads Fastest Pick And Place Machine 180000CPH 2



High Speed 34 Heads Fastest Pick And Place Machine 180000CPH 3



Application



  1. Communication/electronics industry
  2. LED light industry
  3. The power industry
  4. The automobile industry
  5. House appliances industry
  6. Industrial Electronics Industry
  7. Solar photovoltaic

Services

  1. Pre-sale

Provide product design solutions;

Provide wiring diagrams of the entire line according to customer needs;

Provide raw materials, such as led chips, PCB boards, solder paste, etc.;

  1. On sale

Provide customers with the progress of machine manufacturing;

Provide the test situation of the machine.

  1. After sale

Arrange engineers to come to the factory for installation, commissioning and teaching free of charge;

Within one year of the warranty period, any accessories that need to be replaced or repaired are free of charge;

We have service office in India, and have India engineer in Delhi and Mumbai. Can support quickly;

Every year, there is an opportunity for engineers to come to service for free.



FAQ



1. What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.

2. What is the delivery date?

We will deliver the goods after 30 days' deposit.

3. What mode of transport does the goods adopt?

Our mode of transportation is very flexible. Our mode of transportation including water, land and air transportation. You can choose the most suitable way according to your requirements.

4. What is the direction of transmission of machines?

The transmission direction of this machine is single direction. From left to right or from right to left.

5. How about your operating system?

The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
