1200mm Semi Automatic Stencil Printer In SMT Production Line
smt printing machine 1200mm semi-automatic stencil printer in smt production line

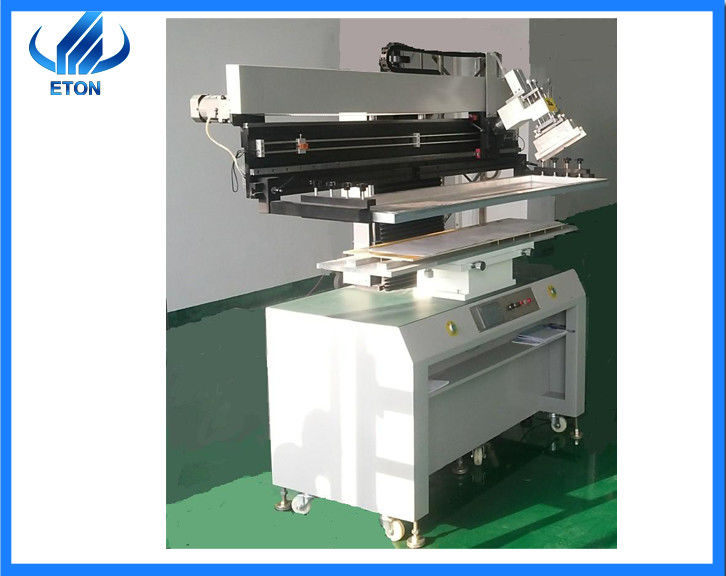

Details of semi-automatic stencil printer
SMT printing machine is suitable for solder paste printing of surface assembly components in SMT surface mount technology. Specifically, it is in the SMT electronic mounting process, the use of the mesh plate hole will be electronic fiber material (solder paste, adhesive, etc.) printed on the circuit board of the machine equipment, the purpose is to adhere to the chip electronic components.
Features of semi-automatic stencil printer
(1) The governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) The scraper holder can adjust forward and backward, to select the suitable printing position;
(4) Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) Can be set unidirectional and bidirectional multiple printing methods.
Specifications of semi-automatic stencil printer
|PCB size||1200×300 mm|
|Plate Area||1250×320 mm|
|Stencil Frame Size||470×370 mm～1300×550 mm (L×W)|
|Positioning way||positioning pin|
|Scraper Speed||0-100 mm/sec|
|Power||220V single phase, 50/60 HZ|
|Power Consumption||120 W|
|PCB plate thickness||0.2-2.0 mm|
|Plate Trimming||Front/back +/- 10mm Right/Left +/- 10mm|
|Printing Precision||+/- 0.05 mm|
|Air supply||5-7 KGF/cm2|
|Dimension||(L)1600 x(W)900 x(H)1650 mm|| |
1. Body is not allowed to enter the machine during operation;
2. The maximum time from solder paste printing to reflow soldering shall not exceed 4 hours;
3. Check the completeness of the scraper before operation.
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
1.Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3.What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5.Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
