PCB Belt Conveyor SMT Machine For LED Lighting Electrical Board

PCB Belt Conveyor SMT Machine For LED Lighting Electrical Board

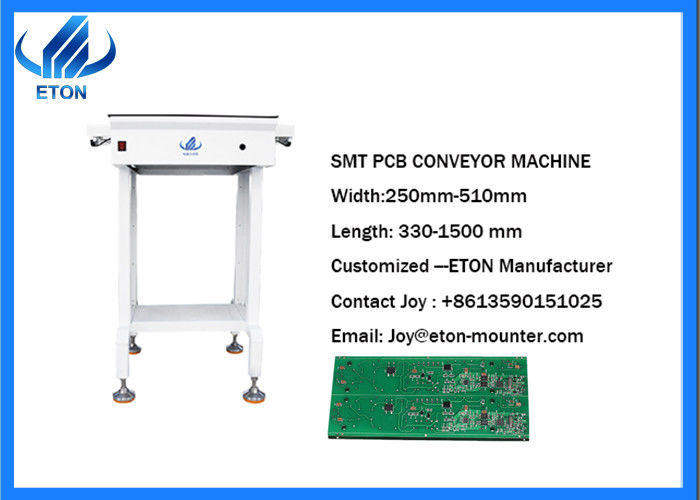

PCB Belt conveyor smt machine

PCB Conveyor machine application

The docking station is mainly used in industrial factories, and its main function is to transfer and replace PCB boards. The docking station mentioned here is a docking station with a track, not a belt conveyor line. There is a difference between the two. There are automatic placement machines, automatic printing machines, reflow soldering machines, upper and lower board machines and so on. Although it is relatively small, the function is very important, and it is an indispensable machine in the entire SMT production line. At the same time, its market price is not high, but this equipment is indispensable, and customers can’t buy it just to save a little money.

PCB Conveyor machine main parameter

Control: PLC control system, through SMEMA communication

Sheet metal weighted structure, overall stable, not easy to shift

Transportation support Left to right or Right to Left

Transport height 880-920 mm

Conveyor belt type: 4mm wide flat belt

PCB size: Support mini pcb size 80*50 to max pcb 1500*510mm, support customized according pcb

Operation of conveyor smt machine

The SMT industry standard is connected by SMEMA. Only a simple wire is connected between the machines to start the operation. Only basic electrical knowledge is required, and it can be applied without teaching. And the machine is delivered as a whole machine, no assembly is required, except that the lamp holder needs to be screwed and installed, everything else is complete. A simple device that can be applied when the power is turned on
