Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| Total Weight: | 1250kg | Feeders: | 64 PCS |
| Dimension: | 1195*1930*1750mm | PCB Size: | 400*300mm |
| Warranty: | 1 Year | Nozzles: | 20 PCS |
| High Light: | 500mm Fastest Pick And Place Machine,500mm Led Bulb Making Machine,500mm pcb pick and place machine |
||

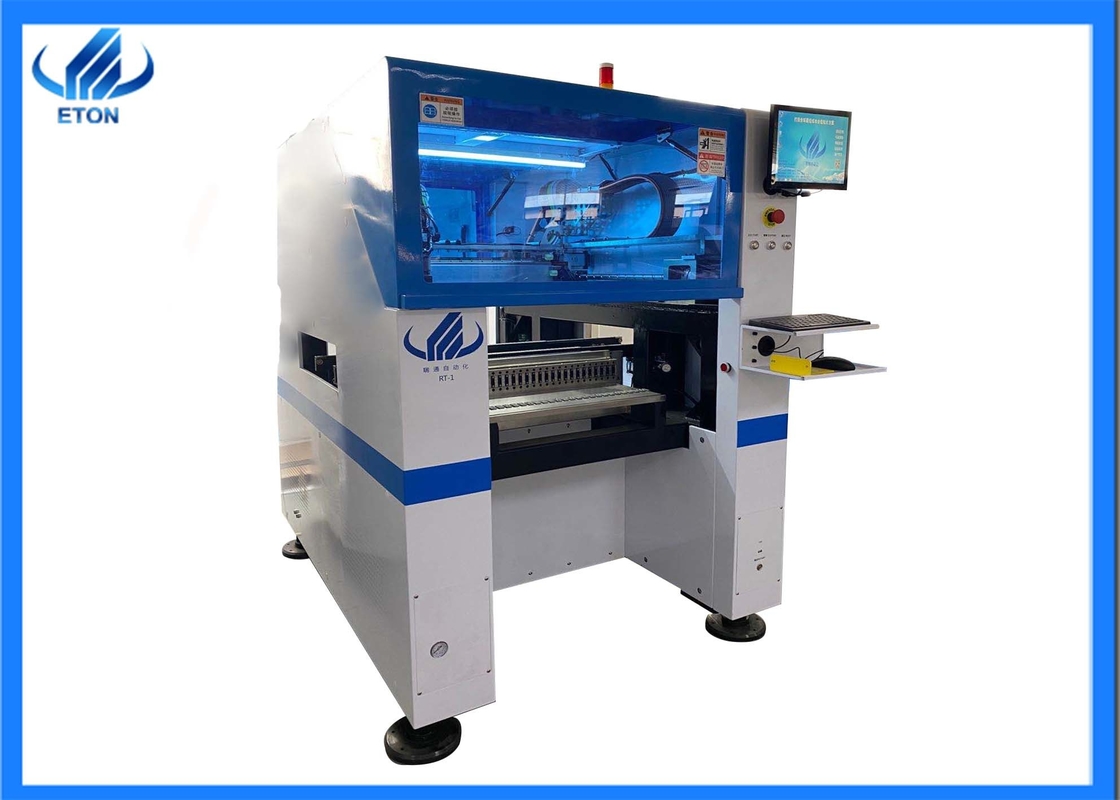

high speed 500mm PCB 0402 smd fastest led bulb making machine led light machine
Features of smd pick and palce machine
Magnetic linear motor multifunctional pick and place machine.
Mounting components: LED/capacitors/resistors/IC/shaped components/etc.
Exclusive patented technology
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Auto-optimization after coordinates generated, etc.
| RT-2 | ||
| PCB | PCB length width | Max:400*300mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
Group to pick and separate to place Separate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
4 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.04mm(repeat precision) | |
| Mounting height | <22mm | |
| Mounting speed | 60000~70000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Gas consumption | 0.4~0.6mpa 300N/min | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single left to right or right to left | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding system | No.of feeders station | 64 PCS |
| No.of nozzles | 20 PCS | |
| Feeding way | Electric feeder with double motor | |
What it can do ?
Now the LED display LED lights and other products, ETON placement machine can be mounted. LED mounting range is relatively wide, all kinds of LED components, resistors, capacitors, special-shaped components can be mounted. At the same time, we can recommend different models with different speeds according to customers' production requirements.
What product RT-2 can produce?
RT-2 pick and place machine suitable led products,such as led light,led bulbs,led tubes,rope light,led flexible strip light,panel light,led display screen,power driver,etc.
Services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
FAQ
1,How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
2,What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
3,How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4,Is your software interface in English?
English interface and Chinese interface are both available.
5,How is the warranty?
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
