Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Mounting Speed: | 180000CPH | Dimension: | 2700*2300*1550mm |
| Pcb Thickness: | 0.5-5mm | Weight: | 1700kg |
| Head: | 34PCS | Power: | 380AC 50HZ |
| High Light: | 180000CPH SMT Mounting Machine,LED 3014 SMT Mounting Machine,180000 CPH smt chip mounter |
||

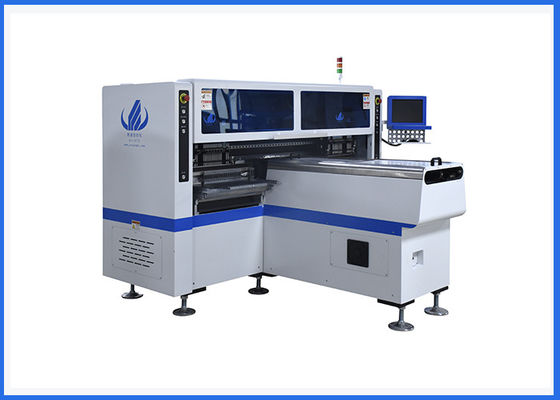

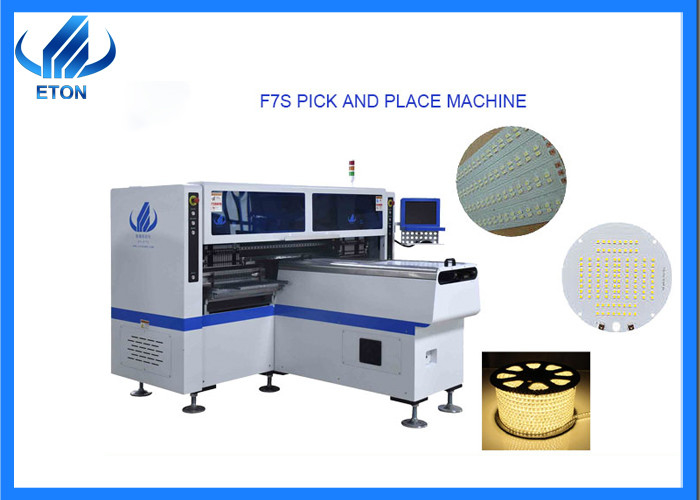

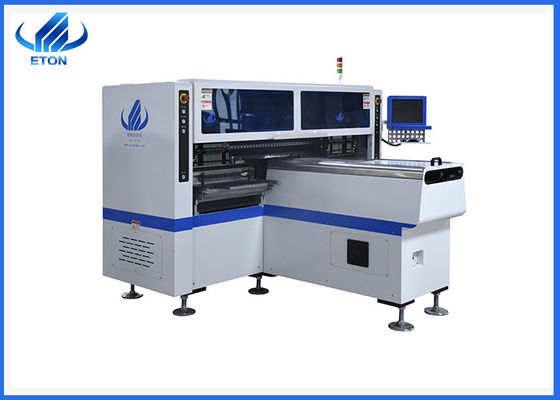

Tube Making SMT Mounting Machine 34 Head 180000CPH For LED 3014
High Efficiency Tube Making machine With 34 head 180000CPH SMT Machine
Product Description:
1. It has 34PCS head and the mounting speed can reach 180000CPH.
2. The maximum PCB size is 1200*330mm.
3. Calibration automatically, high precision,available for RGB.
4. Group to take and group to mount
Advantages:
* Dual arm professional high-speed SMT machine.
* Producing 2-4 types materials at the same time.
* Vision alignment ,Mark correction.
* The mounting speed can reach 180000CPH.
* It can produce tube, LED flexible strip, panel light etc.
* Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers etc.
Specification:
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB size | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| Mounting height | ≤5mm |
| Mounting speed | 180000CPH |
| No.of head | 34PCS |
| Mounting precision | ±0.02mm |
Application:
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.Producing with two to four types materials at the same time with high capacity.
Apply to the panel light, LED flexible strip,tube,etc.
Company Introduction:
1.10 years development history.
2. Independent R&D Exclusive Patented technology.
3. 80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China
Packaging:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Exhibition:
Our company go to many countries to participates in the exhibition,such as Egypt, India,Turkey,Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
FAQ:
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q: Will you be participate the exhibition around the world?
A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
