180000CPH pick and place arm SMT mini pick and place machine for SMT line

180000CPH pick and place arm SMT mini pick and place machine for SMT line
180000CPH pick and place arm SMT mini pick and place machine for SMT line 180000CPH pick and place arm SMT mini pick and place machine for SMT line 180000CPH pick and place arm SMT mini pick and place machine for SMT line 180000CPH pick and place arm SMT mini pick and place machine for SMT line

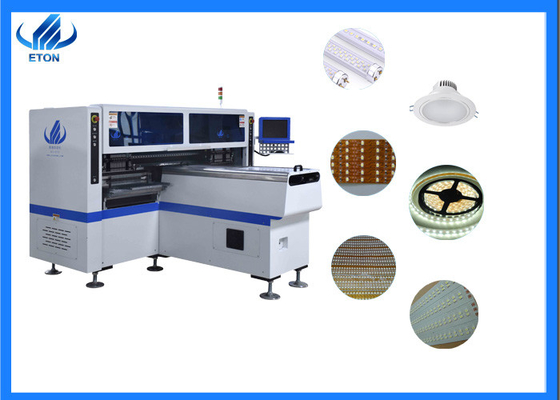

Large Image :  180000CPH pick and place arm SMT mini pick and place machine for SMT line

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-F7S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 45000-67500/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Chip Mounter Machine Feeders: 68 PCS
Components: LED 3014/3020/3528/5050 Resistor Capacitors Nozzles: 34 PCS
Speed: 150000~180000CPH Mounting Height: 5mm
PCB Size: 250mm*any Length Pcb Size: 1200*330mm
Applicable Components: 0402--5050,etc Type: SMT Machine Related Products
Repeat Accuracy: ±0.02mm Warranty: 1 Year

180000CPH pick and place arm SMT mini pick and place machine for SMT line

Features of SMT pick and place machine


Exclusive patent technology: Group to pick and group to mount.
High speed:150000~180000 CPH,with 34 heads
Two mounting modules, 18 nozzles for each mounting part, part A and part B can be mounted separately or synchronously.
Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 2~4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.

Technical parameter of SMT pick and place machine


PCB Length Width Max:1200*330mm Min:100*100mm
No. of Camera 5 sets ( Digital camera)
  Vision alignment, MARK correction
Repeat Mounting Precision ±0.02mm(Repeat precision)
Mounting Height ≦5mm
Mounting Speed 150000~180000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space 0.5mm
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃



180000CPH pick and place arm SMT mini pick and place machine for SMT line 0

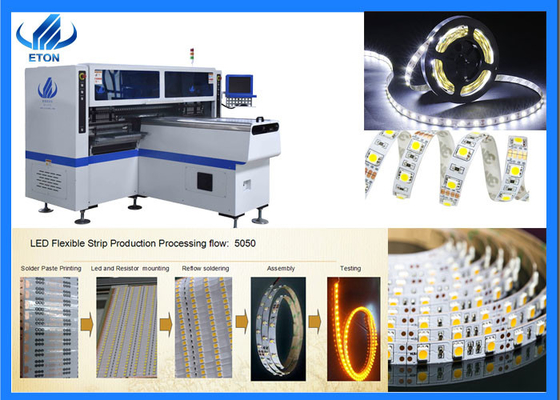

SMT production line


With high assembly density, small size and light weight of electronic products, the volume and weight of SMD components are only about one-tenth of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. The defect rate of solder joints is low.
Good high frequency characteristics, reducing electromagnetic and radio frequency interference.
It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.

180000CPH pick and place arm SMT mini pick and place machine for SMT line 1





Compony Views

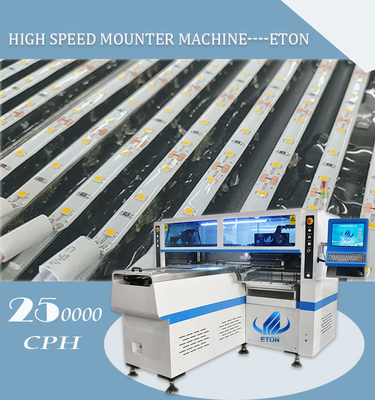

180000CPH pick and place arm SMT mini pick and place machine for SMT line 2
