Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Weight: | 1700kg |
Mounting Speed: | 250000CPH | Pcb Thickness: | 0.5-1.5mm |
High Light: | Strip SMT Mounting Machine,SMT Mounting Machine 68 Nozzle,68 Nozzle Pick And Place Machine |

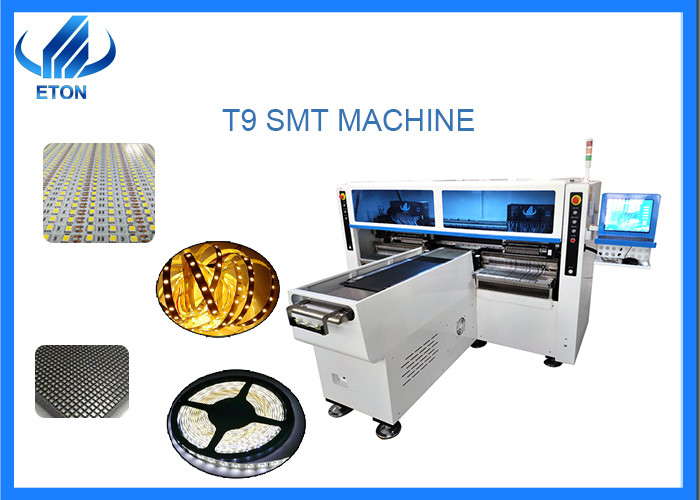

Highspeed LED any length flexible strip making machine 68 nozzles pick and place machine
Machine main feature:
1)Super High-speed pick and place machine, producing with four types material at the same time with high capacity, available for 5M, 50M or any length of flexible strip and roll to roll.
2)Machine functions: Picking components and mount on the PCB automatically.
3)Intelligent PCB Clamping mode: Vacuum adsorption, cylinder splint, adjustable track width.
4)Exclusive patent technology :Group to take and group to mount

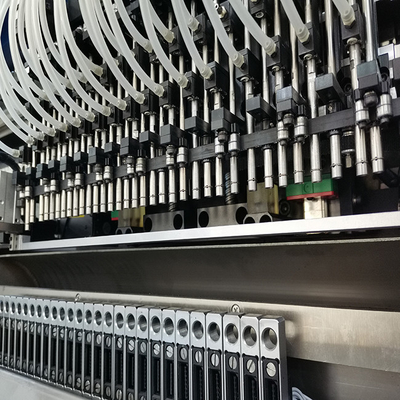

5)Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
6)High precision, Calibration automatically, available for RGB.
Main parameter:
Length | 3100mm |
Width | 2300mm |
Height | 1550mm |
Total weight | 1700kg |
PCB size | 250mm*any length |
PCB thickness | 0.5-1.5mm |
Mounting height | ≤5mm |
Mounting speed | 250000CPH |
No.of head | 68PCS |
Mounting precision | ±0.02mm |
Company profile:
Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 20 counties.
SMT production line:
SMT Production line is mean the surface mounting technology production line. It can be semi auto line or total automatic line. Usually include Loader machine(Send board machine), Stencil printer, Reflow oven, Conveyor, Belt line, Reflow oven, Un-loader machine, etc. For strip light, different length need different length space. For T9, normally apply to 25 m Strip light, here is the line design:
Service:
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
Certificate:
We got 9 invention patents, 112 practical patents,12 software patents.
FAQ:
Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
