90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine

90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine
90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine

Large Image :  90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: E8D-600
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Length: 1950mm Width: 2250mm
Height: 1650mm Total Weight: 2200KG
PCB Size: Max:600*300mm Min:100*100mm No.of Head: 24PCS
Mounting Speed: 90000CPH Feeding Way: Electric Feeder With Double Motor
High Light:

Double Module LED Mounter Machine

,

90000CPH LED Mounter Machine

,

MIN Size 0402 SMD Mounter Machine

90000CPH double module led mounter machine MIN size 0402

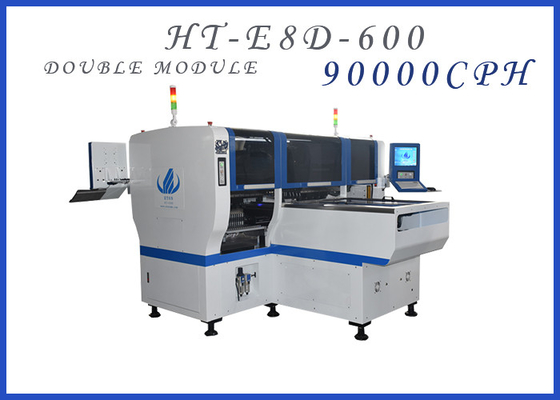

HT-E8D-600 introduction

Ht-e8d-600 dual-mode maglev multifunctional high-speed Mounter dual-mode group has 12 suction nozzles in each group, a total of 24 suction nozzles, and Feida dual-mode group has 48. Maglev linear motor has longer service life and higher precision. The optimal production capacity of high-speed Mounter per hour is 90000 CPH. It has two systems and can produce two different products at the same time. The multi-functional mounter is widely used in the mounting of various drives, power supplies, circuit boards, lenses, linear bulbs, home appliance control boards and other products. Exclusive patented technology, electronic Feida feeding system, flight recognition vision.



Technical parameter

Model HT-E8D-600
Dimension
Length 1950mm
Width 2250mm
Height 1650mm
Total Weight 2200kg
PCB
PCB Length Width Max:600*300mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 4 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Precision ±0.04mm
Mounting Height <15mm (Automatic Changing)
Mounting Speed 90000 CPH
Components LED , capacitors, resistors, IC,shaped components, etc.
Components Space 0.2mm
No. of Feeders Station 48 PCS
No. of nozzles 24 PCS
Power 380AC 50HZ
Power Consumption 8 KW
Operating Environment 23℃±3℃
Conveyor transmission Max length :600 mm
Transmission Speed >1000mm/sec
Transmission Direction Both direction (option)
Transmission Mode Auto online drive
Air supply 0.4-0.6mpa (4-6kgf/cm2)300N/min
Electrical control Independent research and development by ETON
Motion control card module 2 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor




90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 0

Company profile

Since its establishment in 2011, ETON has become one of the leaders in the global photoelectric high-speed Mounter after nearly ten years of development. The high-speed machine developed by ETON has changed the market price of LED lamps, obtained various certificates and applied for more than 100 invention patents.

90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 1

APPLICATION

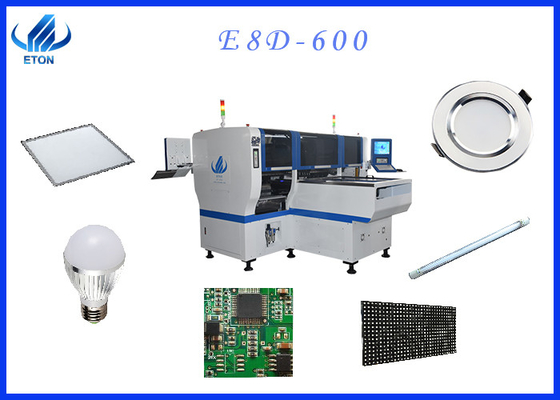

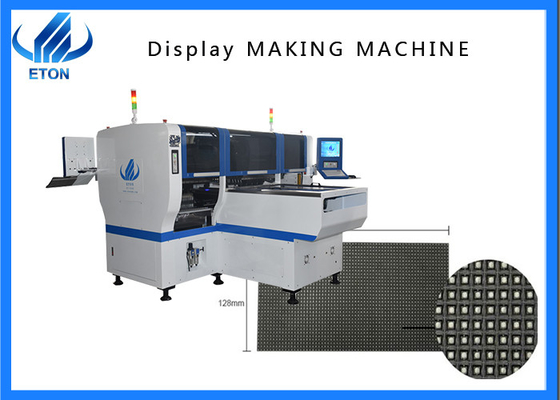

Application:bulbs, panel lights, drivers, downlights, DOB,streetlight electric board and so on



90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 2

SMT LINE

90000CPH Double Module LED Mounter Machine MIN Size 0402 SMD Mounter Machine 3

PACKING

We use vacuum wooden box packaging

Step 1:Film packaging

Step 2:Vacuum packing

Step 3:Wooden box packing



FAQ

Q: Are you a trade company or a manufacturer?

We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.

Q: What is your delivery date?

The delivery date is about 20 days upon the full payment.

Q: What is your payment terms?

100% payment before delivery or 50% deposit in advance and the rest before shipment.
