Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pick And Place Machine | No. Of Heads: | 136pcs |
|---|---|---|---|
| No. Of Feeder Station: | 136 Pcs | No. Of Camera: | 10 Pcs |
| Optimal Speed: | 500000cph | FPCB Size: | 250(±10）mm* Any Length |
| PCB Thickness: | 0.1-0.5mm | PCB Clamping: | Vacuum Adsorption, Cylinder Clamping, Track Width Adjsutable |
| High Light: | pick and place machine Flexible Strip,pick and place machine 500kcph,Double rail led strip manufacturing machine |
||

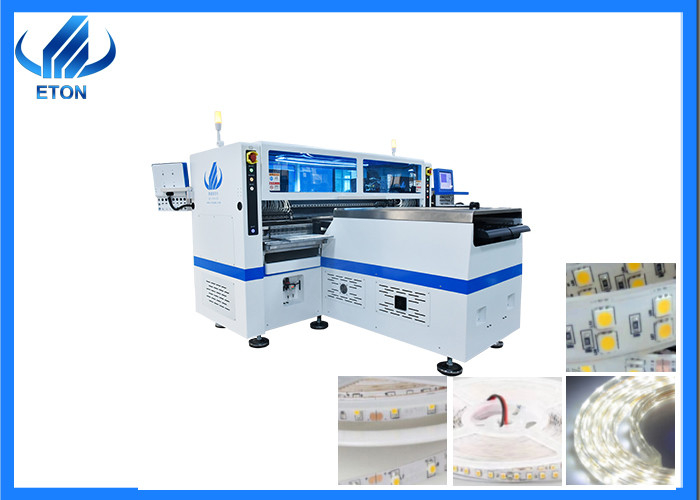

In stock can be customize flexible strip pick and place machine
Machine Introduction:
500000CPH meets your requirements
Machine main features:
1.Flexibly adjust the distance of the feeder mounting base to achieve group picking and group pasting, and realize the function of one pasting and two reclaiming
2.The maximum adjustable range of the feeder is twice that of the feeder, and can produce four kinds of materials at the same time
3.Intelligent feeder, which supports the electric intelligent feeder of high-speed special machine series
4.Flight identification function, without pause, detects whether there are components and the adsorption state of components to prevent installation errors
Machine main parameter:
| Model | T9-2S |
| Dimension(L*W*H) | 3454*3035*1777mm |
| Weight | 3100kg |
| PCB length width | 250mm(±10)*any length |
| PCB thickness | 0.5~0.5mm |
| Mounting way | Group to picking and group to mount |
| Mounting mode | Double rail+four group of placement heads |
| Mounting height | ≤5mm |
| No.of camera | 10PCS |
| Vision alignment, Mark correction | |
| Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Power consumption | 9.6KW |
| Optimum Mounting speed | 500000CPH |
| No. Of feeders station | Double side:136 PCS(single side:68pcs) |
| No. Of head | Double side:136 PCS(single side:68pcs) |
| X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
| Feeding way | Intelligent electric feeder with double motor |
About ETON HT-T9 PK T9-2S
| ETON T9-2S mounter | ETON HT-T9 mounter | |
| Stability | 3100kg | 1700kg |
| No. Of heads | 136pcs | 68pcs |
| Optimal speed | 500000CPH | 250000CPH |
| No. Of camera | 10pcs | 5pcs |
Conclusion: Compared with T9, T9-2S has double production efficiency, stronger stability, and the price is not very large
Why choose us?
Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .
High quality: We have strictly quality control during all production from raw materials to the finished machine.
High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.
Service
一, Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
二, On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
三, After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.
