| Name: | Pick And Place Machine | Model: | YT402 |
|---|---|---|---|
| Feeders Station: | 64PCS | Heads: | 20 PCS |
| Feeding Way: | Intelligent Double Head Feeder | System: | Windows 7 |
| Software: | R&D By ETON | ||
| High Light: | 120000CPH led bulbs making machine,Linear Motor LED Bulbs Making Machine,LED Bulbs PCB Pick And Place Machine |
||
led marking machine 120000CPH linear motor bulbs making machine

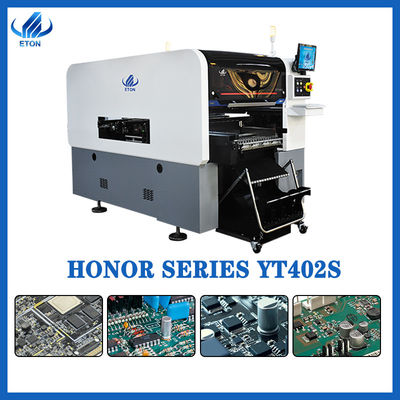

The features of YT402 SMT pick and place machine
(1) apply to 0201-10*10mm large chip, wider component range
(2)adopt high end magnetic linear motor, servo motor , the capacity increased by 25% compared with traditional machine, optimum placement speed reach 120000 CPH.
(3)MARK camera adopt 3-color illumination recognition, apply to any shape mark and lens, wider range of applications.
(4)the placement head adopt independent vacuum detection improve placement performance
(5)off-line programming, save time of changeover cycle
mount the same large PCB at the same time, realizing flexible production
The Parameter of YT 402 SMT machine
| model | YT 402 |
| PCB size |
MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| rail | 2 rail, 2 gantries( rail 1,4 are fixed rail) |
| system | Windows 7 |
| software | R&D independently |
| Production management MES system | Customized(option) |
| Off-line programming | available |
| No. Of camera | 4 set (digital camera) |
| Bottom vision camera recognition | |
| Vision alignment+ mark correction | |
| Mounting speed | 120000 CPH(optimum speed) |
| Components range | Min 0201-10*10mm packages and IC etc |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
| No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
| No. Of heads | Double side: 40 PCS(single side: 20 PCS) |
| Feeding way | Intelligent double head feeder |
The full automatic production line of YT402 pick and place machine
For the full automatic line, will be more labor saving, generally only need a worker is enough; In addition, the printing and mounting precision of the automatic production line is higher, and the error of manual operation is reduced.
