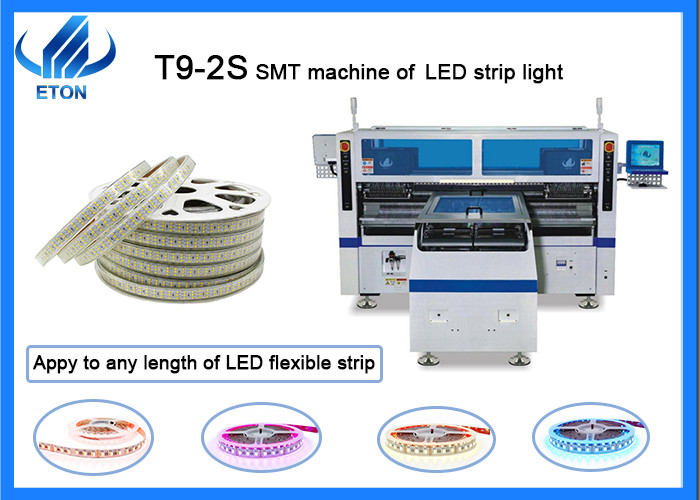

Automatic 50m LED Flexible Strip Machine 50W CPH Fastest Pick And Place Machine

Automatic led flexible strip machine for 50M LED strip with 50W CPH

The Features of automatic 50M led flexible strip machine

optimum capacity reach 500000CPH.

4 mounting heads, each mounting head has 34 PCS heads, total has 136 PCS heads and 136 PCS heads

realize the function of two time picking and once placing; produce four kinds of materials at the same time;

PCB size:any length* 250(±10)mm, the max length range is 1M per cycle.

10 sets of camera, high accuracy recognition vision camera ; no pause to detect the presence or absence of components, component adsorption state, prevent placement errors

Technical parameter of automatic 50M led flexible strip machine

The production line of T9-2S automatic 50M led flexible strip machine

For automatic 50M led flexible strip machine T9-2S, it needs two lines, and the total length is about 46347mm. it need 2 stencil printer, 2 loader, 2 unloader, buffer, 25M Double Rail Belt Line and reflow oven.

The SMT machine and other peripheral equipment

1. Multifunctional pick and place machine: apply to various led light, power driver, display etc.

2.Professional pick and place machine: apply to led tube, led strip, especial any length of led strip (5m, 10m, 25m, 100m), highest optimum capacity reach 50W CPH

3.HONOR series pick and place machine, apply to 0201~40*40mm tape reel package and IC tray feeder, adopt new feeding way, docking cart, IC tray feeder and double head intelligent feeder

4.SMT peripheral equipment:Loader, conveyor, reflow oven, stencil printer, stocking loader, AOI, SPI and so on

Company introduction

ETON is a manufacturing and process solution provider, which is focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.

Since ETON was established, it has a history of 11 years.ETON has continuously developed and innovated to produce many series of equipment, which is suitable for all LED light products (DOB, bulbs, street light, down light, table light, strip light, tube light, led display and so on); With its own strength, ETO has exported its products to more than 20 countries, such as India, Egypt, Turkey, Pakistan, Iran, South Africa and so on.

Service

Maintenance period 1 year

Software and hardware lifetime maintenance

Visit customers regularly and gather information

Provide the latest information about technology and equipment

On-site service: local offices( India, Egypt, Turkey etc. ) provide service timely with our engineers.

transport

Step 1: pack the machine with foam cotton and stretch film to protect the outside of the machine

Step 2: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;

Step 3: professional wooden box packaging.
