| Name: | Pick And Place Machine | Model: | HT-T9 |
|---|---|---|---|
| Feeders Station: | 68 PCS | Heads: | 68 PCS |
| Mounting Speed: | 250000 CPH | PCB Size: | 250mm* Any Length |
| Feeding Way: | Electric Feeder With Double Motor | Mounting Mode: | Group Picking And Group Placing |
| High Light: | Long Strip Pick And Place Machine,25m Strip Pick And Place Machine,250K CPH LED Light Making Machine |
||

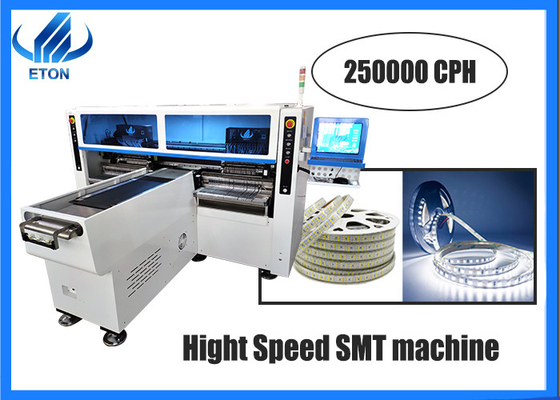

High speed SMT machine for 50m long flexible strip led light
main features for 50m long flexible strip led light
High: mounting speed: 250000CPH(in good conditions) mounting speed
High accuracy: the guide rail adopt magnetic linear motor and servo motor
Four modules and two arms, 68 feeders station and 68 heads
mounting mode of group to pick and group to place
5 sets of digital camera, vision alignment and mark correction

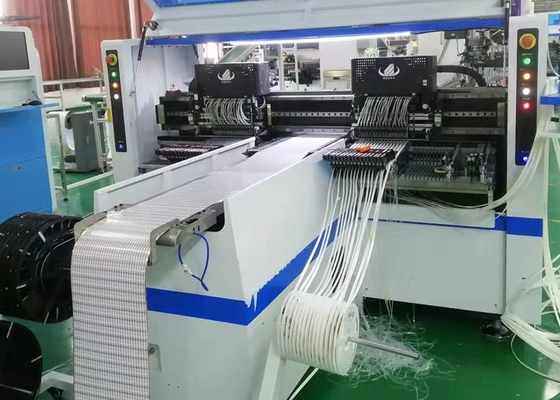

Apply to any length of led flexible strip, including 5M, 10M, 25M, 50M, 100M and so on. There is a platform to supports the PCB soft board of LED flexible strip.
software is researched and developed independently by ETON which has two language version, English and Chinese. it is also very easy to operate.
main parameter for 50m long flexible strip led light
| PCB Length width | 250mm*Any length |
| PCB Thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Transmission speed | >500mm/sec |
| Repeating Mounting precision | ±0.02mm |
| Component height | ≤5mm |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Power consumption | 6KW |
| Positioning way | Optical |
| Feeding way | Electric feeder with double motor |
| Mounting speed | 250000CPH |
| Name | Pick and place machine |
| Brand | ETON |
| Component range | LED 3014/3020/3528/2835/5050 and resistor, capacitor, bridge rectifiers, etc. |
SMT production line of 50m long flexible strip led light
Semi automatic production line: lower Costs, space smaller and production is relatively flexible.
Company introduction
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. The company has always been committed to providing customers with "professional, efficient, and low-consumption" SMT automatic placement machines.
The delivery and transport
1. to pack the machine with foam cotton and stretch film to protect the outside of the machine
2. use the Vacuum packaging, put the desiccant in a vacuum bag to prevent moisture, use straps to secure the machine
3. use the professional wooden box packaging
FAQ
1. What can we do ?
We can provide SMT machine, SMT peripheral equipment and whole SMT line solution
2. What components do our machines apply to?
Our machines can patch LED 3014/3020/3528/2835/5050/5630/5730 etc., capacitors, resistors, IC, shaped components and so on.
3. This is the first time I use this kind of machine, is it easy to operate?
Yes. There are guide video that show you how to use machine.We also provide overseas on-site service.
4. Why do we adopt the smart electronic feeders?
Our machines adopt the smart electronic feeders which are more stable,universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cast and drop of materials effectively
5. Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
