Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Module: | HT-F7S |
|---|---|---|---|
| Brand: | ETON | Warranty: | 1 Year |
| Condition: | New | Mounting Speed: | 150000-180000 CPH |
| Pcb Thickness: | 0.5-5 Mm |

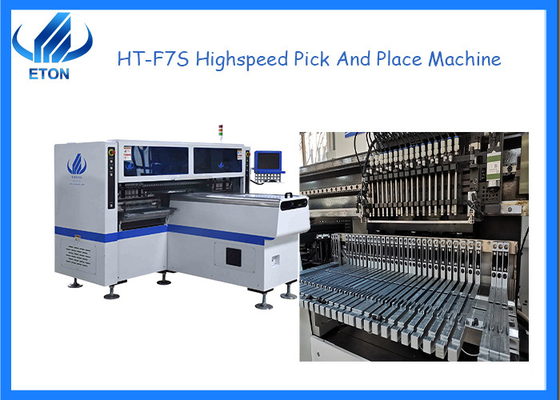

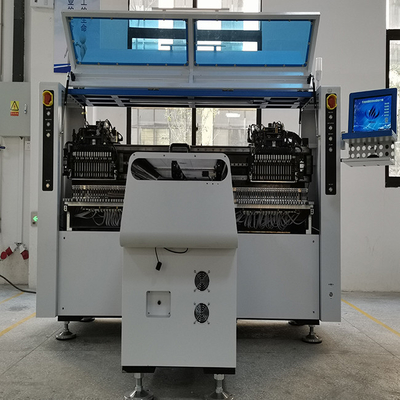

1.2m tube/flexible making machine group picking and group placing pick and place machine
Technical parameter
| HT-F7S pick and place machine | |
| Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg |
| PCB Size | Max:1200*330mm Min:100*100mm |
| PCB Clamping | Adjustable pressure pneumatic |

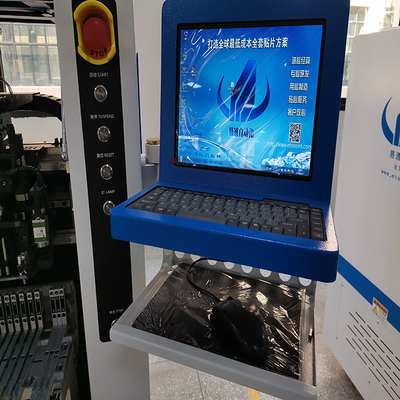

| Software | R&D independently |
| No. of camera | 5PCS(Digital camera) |
| Features of camera | Vision alignment, Mark correction |
| Mounting speed | 150000-180000CPH |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| No. of feeders station | 68PCS |
| No. of nozzles | 34PCS |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| Feeding way | Electric feeder with double motor |
Features
SMT line
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Packaging
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Can you provide a whole line solution?
A: Yes, we can .We can supply SMT line and LED production line.
Q: How can I get to know you better?
A: You can have a specific understanding of our company through our company's official website. After the epidemic, you can come to our company to know offline under safe conditions. Off-line can make you have a deeper impression on our company.
