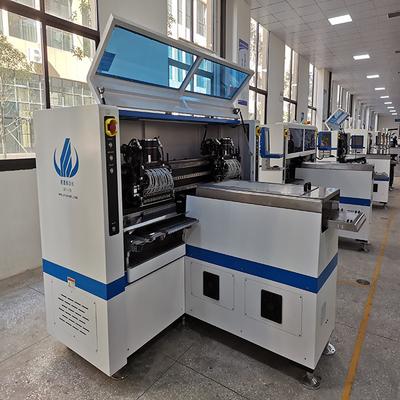

0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making

0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making
0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making

Large Image :  0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Name: Pick And Place Machine Module: HT-T9
Local Service: India, Egypt, Vietnam Warranty: 1 Year
Applicable Components: 0402 Condition: New
High Light:

SMD Mounting Machine 250000CPH

,

0402 SMD Mounting Machine

,

No Wire Strip SMT Mounting Machine

SMD components mounting machine 250000CPH suitable for no-wire strip making



Machine features

① Super High-speed pick and place machine, producing with four types material at the same time with high capacity, available for 5M, 50M or any length of flexible strip and roll to roll.

② Machine functions: Picking components and mount on the PCB automatically.

③Intelligent PCB Clamping mode: Vacuum adsorption, cylinder splint, adjustable track width.

④ Exclusive patent technology :Group to take and group to mount

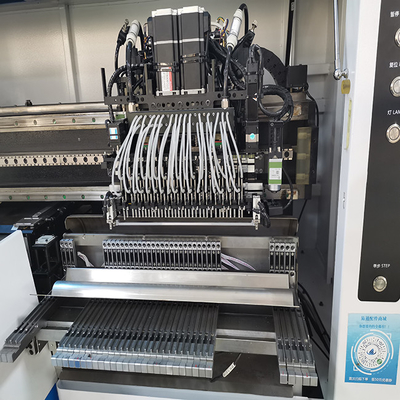

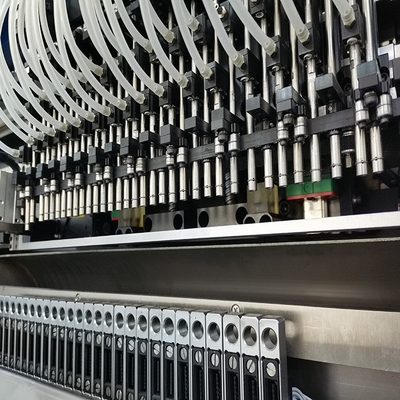

⑤ Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

⑥ High precision, Calibration automatically, available for RGB.

⑦ Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.

⑧Optinal :8mm,12mm,16,and 24mm automatic feeder, different nozzles and feeding way



Main parameter

Models HT-T9
Mounting element height ≤5 mm
Mounting speed 200000-250000 CPH (Chip per hour)
Components LED 3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers
No. of Feeders Station 68 PCS
No. of Nozzles 68 PCS
Power consumption 6 KW
X,Y Axis Drive way High-end magnetic linear motor+ servo motor



Company profile

0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making 0

In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 20 counties.



Exhibition

0402 SMD Mounting Machine 250000CPH Suitable For No Wire Strip Making 1

Our company go to many countries to participates in the exhibition,such as Egypt, India,Turkey,Delhi, Pakistan and so on.



FAQ

Q:What are your advantages?

A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.





Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian engineer and office, etc.



Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..



Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
