Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Visual Camera: | 2 Sets Of Imported Camera |
|---|---|---|---|
| Mounting Speed: | 80000CPH | PCB Size: | 1200*350mm |
| Power: | 380AC 50HZ | Drive Way: | High-end Magnetic Linear Motor +servo Motor |
| Warranty: | 1 Year | Total Weight: | 2000kg |
| Weight: | 56kg-550kg | Component Range: | Led Chip,0603~8520 Chip,0402-32*32mm |
| After-sales Service Provided: | Online Support | Component Height: | ≤10mm |
| High Light: | linear motor surface mount placement machine,magnetic motor surface mount placement machine,smd pick and place machine 80000CPH |
||
SMT machine functional characteristics
1. X axis, Y axis and feeding platform all adopt imported precision screw with high precision to improve equipment operation accuracy and transmission speed;
2. MARK visual correction system, flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.
3. The z-axis of the header is independently controlled by the panasonic servo motor, which can efficiently complete the LED feeding and feeding;
4. Powerful functions: different feeder can be configured to meet the mounting requirements of various LED products.
5, simple operation: Chinese and English graphical interface, easy to operate. Simple programming, can be saved and edited files, arbitrary call;
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
| packing | |
| 1.Filming packing | Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity. |
| 2.vacuum packing | Advantages of moistureproof, dustproof and so on |
| 3.wooden packing | It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions. |

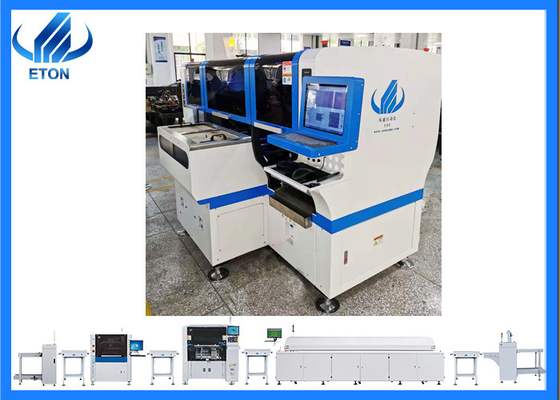

SMT pick and place machine
| HT-E8S | ||
| PCB | PCB length width | Max:1200*350mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 45000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 36PCS | |
| No.of nozzles | 12PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor+magnetic linear motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
