Product Details:
Payment & Shipping Terms:
|
Condition: | New | Local Service: | India, Egypt, Vietnam |
---|---|---|---|
Warranty: | 1 Year | Mounting Speed: | 250000 CPH |
Machinery Test Report: | Provided | Brand: | ETON |
Model Number: | HT-T9 | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
High Light: | 68 Feeders SMT Chip Mounter,No Wire Strip SMT Chip Mounter,Strip Light LED Production Line |

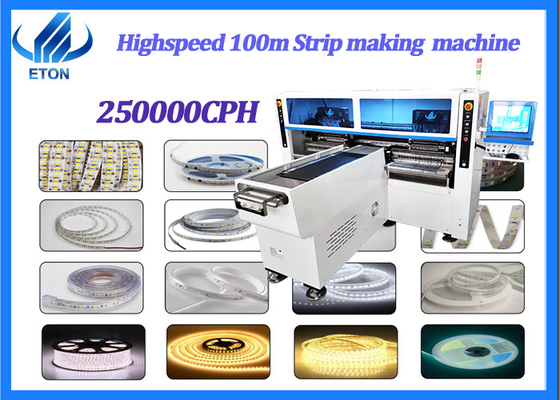

No wire strip light making mounter 68 feeders chip mounter machine in LED production line
LED module mounter machine introduction
LED module mounter machine also called pick and place machine/ placement machine/SMT machine. It is one of SMT Line. The function of mounter is picking components and then mounting on the PCB. It is automatically SMT Machine.
In SMT production line, there are different machines for different module with different functions. Included Loader, Conveyor, Stencil printer, pick and place, reflow oven, un-loader, etc.
Advantages

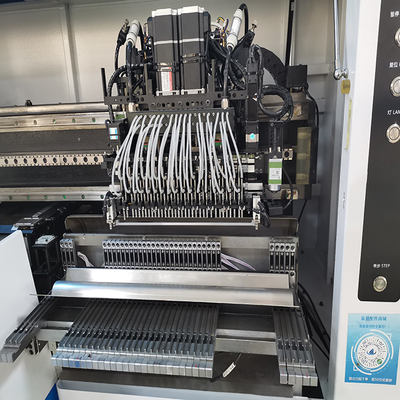

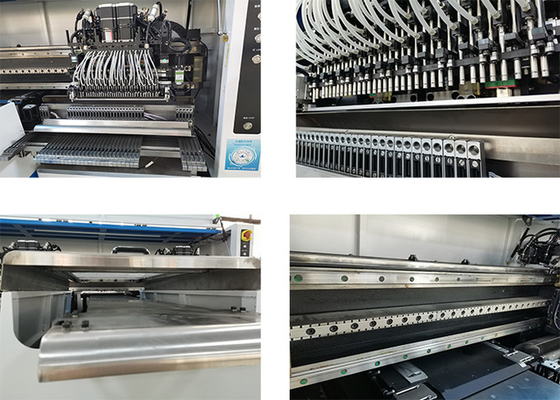

*Dual arm magnetic linear high-speed SMT machine.
*Producing 4 types materials at the same time.
*Vision alignment ,Mark correction.
*The mounting speed can reach 250000CPH.
*It can produce flexible light strips of any length.
*Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers.
Specification
Length | 3100mm |
Width | 2300mm |
Height | 1550mm |
Total weight | 1700kg |
PCB size | 250mm*any length |
PCB thickness | 0.5-1.5mm |
Mounting height | ≤5mm |
Mounting speed | 250000CPH |
No.of head | 68PCS |
Mounting precision | ±0.02mm |

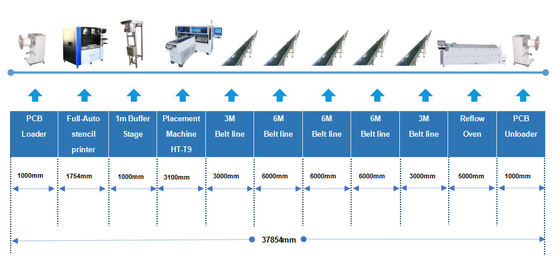

SMT Line
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Our Clients
Clients Projects
100M Strip Light SMT Production Line
ETON helped the client to plan the 100M production line, including the patch production line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine - 24M assembly line - reflow oven - PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers. The client's project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible. Contact David Whatsapp and wechat: +8613827425982
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, it is 10 heads with 40000 cph, another is E8S with 45000 theoretical speed.
