Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter

Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter
Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter

Large Image :  Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-T9-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Condition: New
Usage: Special For The LED Strip Product Name: LED Pick And Place Machine
Max.speed: 500000CPH Local Service: India, Egypt, Vietnam
Weight: 3100KG Outline Dimension: 3454mm*3035mm*1777mm(length*width*height)

Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter



Machines window
1: Machines Introduction

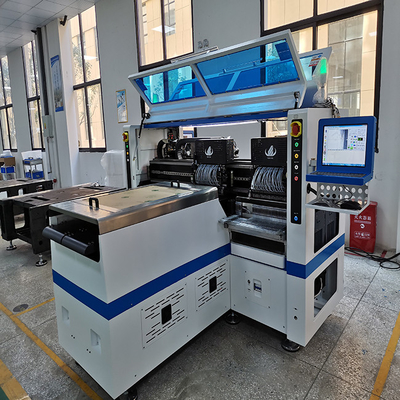

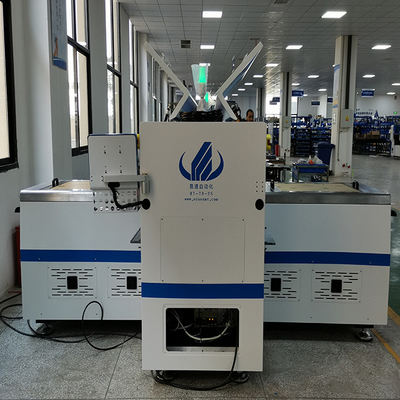

T9-2S SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount. Apply to LED soft lamp manufacturer.
T9-2S achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.

2: Features

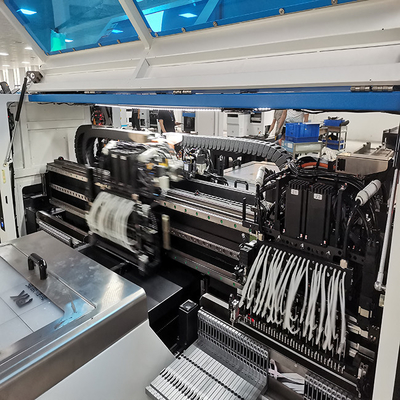

High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500 000 CPH

Specification
Length*Width*Height
2975mm*2285mm *1550mm
Total Weight
3100kg
PCB Length Width
250mm*any length
Mounting Precision
±0.02mm chip
Mounting Speed
500000 CPH(optimum)
Components Speed
0.2mm
Power
380AC 50HZ
Power Consumption
7kw
No. of feeders
136PCS
Components
LED 3014/3020/3528/5050, resistors



SMT Tech Leader in China

ETON focus on technology reach and development, obtains a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. ETON is rated as “Shenzhen High-tech enterprise” ”Guangdong high-tech enterprise” “China high-tech enterprise” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.


Exported to more than 30 Countries and Rigions

ETON has successively reached strategic cooperation with many domestic and foreign companies. And has achieved everyone's unanimous recognition and praise. In the field of high-speed placement machines has become a leading Chinese brand.Till now we have many abroad offices and engineer, such as Indian Delhi, Indian Mumbai, Indian Daman, Egypt Cairo etc

Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter 0



Services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and get her information.
3) Provide latest information about technology and equipment.
Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the
most suitable plan for you to save labor cost.
