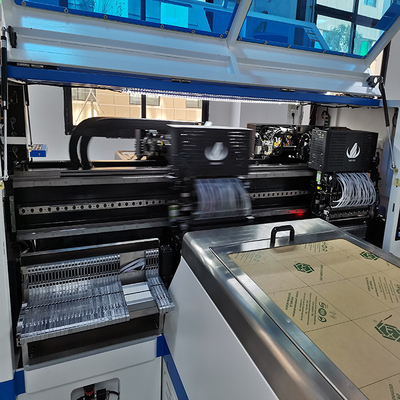

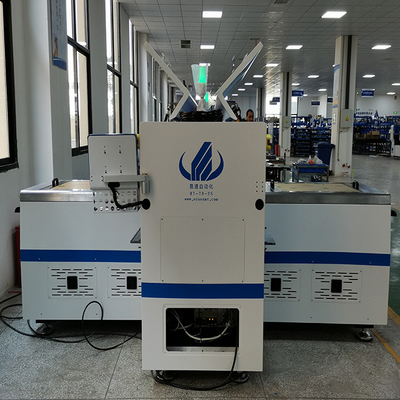

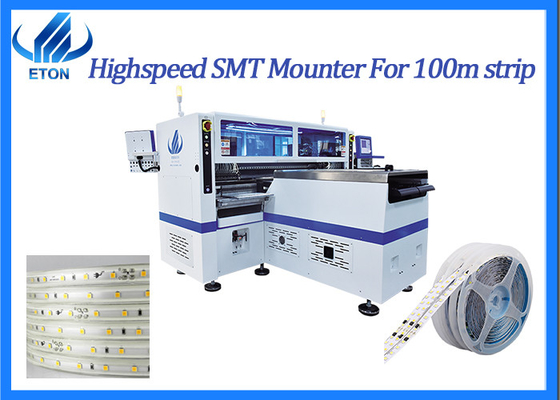

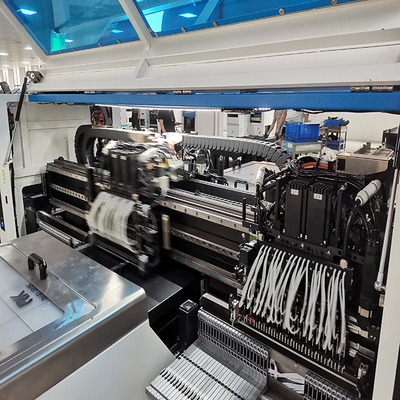

Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter

Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter
Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter

Large Image :  Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-T9-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Condition: New
Usage: Special For The LED Strip Product Name: LED Pick And Place Machine
Max.speed: 500000CPH Local Service: India, Egypt, Vietnam
Weight: 3100KG Outline Dimension: 3454mm*3035mm*1777mm(length*width*height)

Faseest pick and place machine four placement 500K for no wire strip making SMT chip mounter



Machines window
1: Machines Introduction
T9-2S SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount. Apply to LED soft lamp manufacturer.
T9-2S achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.

2: Features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500 000 CPH

Specification
Length*Width*Height
2975mm*2285mm *1550mm
Total Weight
3100kg
PCB Length Width
250mm*any length
Mounting Precision
±0.02mm chip
Mounting Speed
500000 CPH(optimum)
Components Speed
0.2mm
Power
380AC 50HZ
Power Consumption
7kw
No. of feeders
136PCS
Components
LED 3014/3020/3528/5050, resistors





SMT Process

Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter 0
Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter 1
Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter 2
Step 1
Loader Machine
Sending the FPCB roll to printer machine
Step 2
Semi-automatic Stencil Printer
Printing the solder paste on the flexible PCB
Step 3
Buffer Stage
Buffer and transport the flexible PCB to pick and place machine
Step 4
Pick and Place Machine
Mounting LED chips and components on flexible PCB
Step 5
Transportation Belt Line
Transport the flexible PCB to reflow oven
Step 6
Reflow Oven
Heating the solder paste with FPCB to welding the components on FPCB
Step 7
Unloader Machine
Rewinding the finished Flexible strip



TOP BRAND OF SMT MACHINES IN CHINA
Rich experience - over 10 years. 52000 SQM Industry Park-Strong strength Full SMT line solution expert Local installation&
training-no service worry.
50 professional R&D man- Core technology
Update software whole life time for free


Exported to more than 30 Countries and Rigions

ETON has successively reached strategic cooperation with many domestic and foreign companies. And has achieved everyone's unanimous recognition and praise. In the field of high-speed placement machines has become a leading Chinese brand.Till now we have many abroad offices and engineer, such as Indian Delhi, Indian Mumbai, Indian Daman, Egypt Cairo etc

Faseest pick and place machine 10 sets camera 500K for 100m strip making SMT chip mounter 3



FAQ

1.What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.



2.What is the delivery date?

We will deliver the goods after 30 days' deposit.



3.What mode of transport does the goods adopt?

Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.



4.What is the direction of transmission of machines?

The transmission direction of this machine is single direction.From left to right or from right to left.



5.How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
