| Name: | Pick And Place Machine | Visual Camera: | 2 Sets Of Imported Camera |
|---|---|---|---|
| Mounting Speed: | 80000CPH | Power: | 380AC 50HZ |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | Warranty: | 1 Year |
| Total Weight: | 2000kg | Weight: | 56kg-550kg |
| Component Range: | Led Chip,0603~8520 Chip,0402-32*32mm | PCB Size: | 1200*350mm |
| After-sales Service Provided: | Online Support | Component Height: | ≤10mm |
| High Light: | ISO SMT Pick And Place Machine,24 Heads Surface Mount Placement Machine,Dual Module Surface Mount Placement Machine |
||
SMT machine functional characteristics
1. X axis, Y axis and feeding platform all adopt imported precision screw with high precision to improve equipment operation accuracy and transmission speed;
2. MARK visual correction system, flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.
3. The z-axis of the header is independently controlled by the panasonic servo motor, which can efficiently complete the LED feeding and feeding;
4. Powerful functions: different feeder can be configured to meet the mounting requirements of various LED products.
5, simple operation: Chinese and English graphical interface, easy to operate. Simple programming, can be saved and edited files, arbitrary call;
Applicability is wide and the pick and place machine can be used in the production of tube light,down light panel light, bulb, outdoor displays etc., most of the electronic components can be pasted on the classification of a variety of led chips, IC components, lens, shaped components, etc., the minimum of 0402 SMT component specification size, the highest mount is 36 mm , can satisfy the production variety products manufacturers
| Technical parameter | |
| PCB | |
| PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| O.S. | |
| system | Windows7 |
| software | R&D independently |
| display | Touch screen monitor |
| input | Keyboard mouse |
| Feeding system | |
| No. of feeders station | Dual mode ,totally 40 |
| No.of nozzles | Dual mode,totally 16 |
| Feeding way | Electric feeder with double motor |

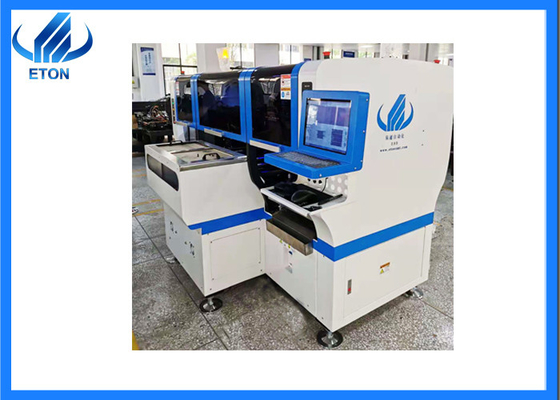

Pictures of SMT pick and place machine
Application of E8D placement machine SMT
Application industry
Household appliances industry, Auto electronics industry, Power industry, LED industry, intelligent control industry, etc.
Application Mounting components:
LED,capacitors,resistors,
IC,shaped components,etc.
Application: Power driver,electric board,lens,linear bulb,household appliance etc.
ETON services
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
