Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Place Of Origin: | China |
|---|---|---|---|
| Visual Camera: | 2 Sets Of Imported Camera | Applicable Components: | 0402--5050,SOP,TQFP,BGA,etc |
| Type: | SMT Machine Related Products,New | Power: | 380AC 50HZ |
| Mounting Height: | <36mm | Total Weight: | 2000kg |
| Dimension: | 2088*1686*1375mm | Mounting Speed: | 90000CPH |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | ||
| High Light: | 5050 High Speed Pick And Place Machine,Two Models SMD Mounting Machine,20 Heads SMD Mounting Machine |
||

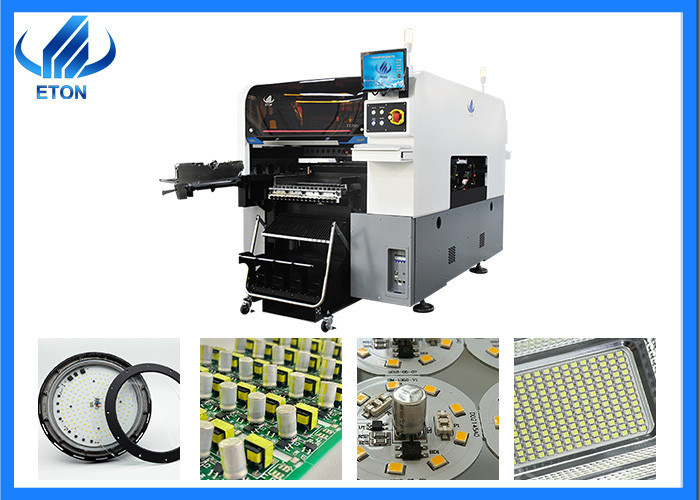

Features of SMT PICK AND PALCE MACHINE
YT20S Placement machine with high-speed multi modular head,each head with 10 nozzles,both high speed and intelligent with light compact desion.modular head with Brans New Flight vision Camera,improve recognition performence,size up to 40*40mm,apply to BGA or csp.etc.Each placement head with independent detection,which improves the stability
YT20S pick and place machine with high precision and fixed flight camera,Components with less than 40*40 mm or height less than 20mm can be used to high precision identification.
| PCB size | Max pcb size:500*450mm min size:50*50mm |
| Software | R&D independently |
| Mounitng speed | 80000CPH |
| Drive way | High-end magnetic linear motor + servo motor |
| Nozzles | Double side :20 pcs |
| feeder station | 32 PCS Tape reel packages:64 PCS |
| Feeding way | intelligent double head feeder |
| Component range | min 0201~40*40mm tape reel packages and IC tray feeder etc. |
| Camera | 4 sets camera |
| power | 380V 50 hz |
Application
Our Company
Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .
High quality: We have strictly quality control during all production from raw materials to the finished machine.
High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Software Upgrade: offers lifetime free software upgrades for all products
