Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-T9-2S |
|---|---|---|---|
| Application: | Any Length Of Strip Light | Mounting Speed: | 500000CPH |
| Warranty: | 1 Year | Color: | White And Blue |
| High Light: | Pick And Place Machine 500000 CPH,No Wire Strip Pick Place Machine,SMT Mounter for no wire strip |
||

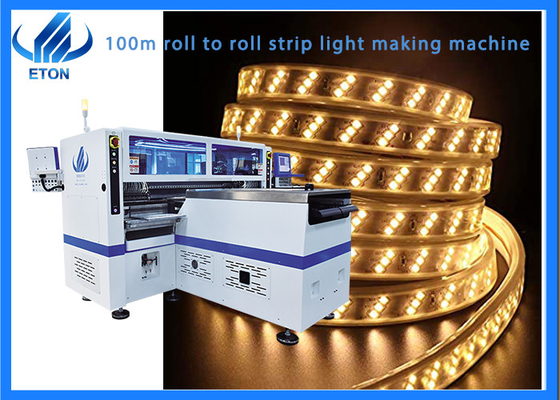

High-Speed Professional Pick and Place Machine T9-2S Double-Rail 500000CPH for led strip
1. Machine techincal parameter
| HIGH SPEED AND PROFEESIONAL PICK AND PLACE MACHINE T9-2S | |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double-rail+four groups of placement heads |
| No. Of camera | 10 sets of digital camera |
| Repeat precision | ±0.05mm |
| Mounting height | ≦5mm |
| Mounting speed | Double side: 500000 CPH, Single side: 250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc. |
| power | 350 AC 50Hz |
| Power consumption | 9.6KW |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 set | |
| Feeding way | Intelligent electric feeder with double motor |
| No. Of feeder station | Double side 136 PCS, Single side 68 PCS |
| No. Of head | Double side 136 PCS, Single side 68 PCS |
2.The layout of smt production line
3.The applications of T9-2S ultra high speed smt pick and place machine
4. Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
5. Shipping and Delivery
1.Land transportation: suitable for inland countries and it is affordable;
2.Air freight: for urgent good, and it is the most expensive transportation way;
3.Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
6. Clients Projects
100M Strip Light SMT Production Line
ETON helped the client to plan the 100M production line, including the patch production
line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine - 24M assembly line - reflow oven - PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers. The client's project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.
