Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine | Model: | HT-T9 |
---|---|---|---|
Application: | Any Length Of Strip Light | Mounting Speed: | 250000CPH |
Warranty: | 1 Year | Color: | White And Blue |
High Light: | 68 Nozzles Pick Place Machine,High Speed SMT Mounter CE,250K CPH High Speed SMT Mounter |
1. Description
IPC9580 Capacity: 200000- 250000 CPH
Patent number: ZL2011 2 0237740.9ZL2011 2 0334606.0ZL 2012 20178869.1ZL 2012 2 0415505.0ZL2012 2 0415044.7ZL2012 2 0415356.8ZL2012 20415061.0
2. Machine techincal parameter
Product name | Mounting machine |
Model | HT-T9 |
PCB size(mm) | Max:250*any length |
PCB thickness | 0.5-1.5mm |
Mounting component height | <= 5 mm |
Mounting precision | ± 0.02 mm |
No.of camera | 5 PCS |
No.of nozzles | 68 PCS |
No.of feeders station | 68 PCS |
Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
Feeding way | Electric feeder with double motor |
3.The layout of smt production line

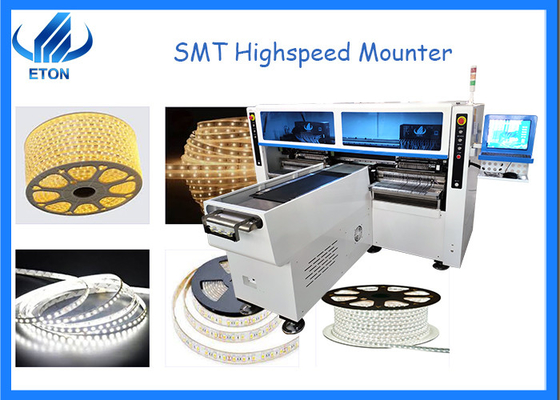

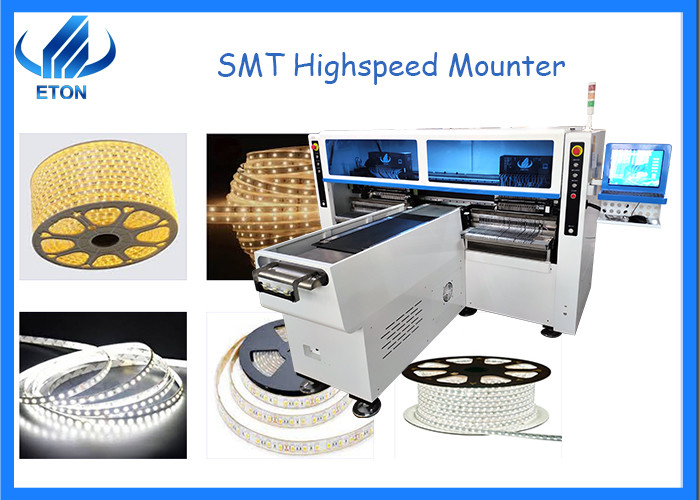

Eton high speed pick and place machine T9 is mounting for flexible strip, as 5m, 10m, 50m or any length. For the convenient way for production while it is better to use semi automatic line for mounting.
4. Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
5. Shipping and Delivery
1.Land transportation: suitable for inland countries and it is affordable;
2.Air freight: for urgent good, and it is the most expensive transportation way;
3.Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
6. Market
As for the 11 years trade with more than 20 countries with our SMT high speed pick and place machine, we have come into business with many partners:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
7. Service
1.We provide whole line solution for our clients needs.
2.We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
3.As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.
4.Chinese engineer can provide online services especially in the period of the COVID-19 epidemic.
5.If necessary, Chinese engineers will come to your factory for free install and training you how to operate the machine.
6.Free up-date of the machine.
7.We will arrange our engineers to visit your factory for check or test the status of the machine.
8.If you have any problem you can contact us with any time we have 24 hours service for solving your problem on time.
