Name: | Pick And Place Machine | Model: | HT-T9 |
---|---|---|---|
Application: | Any Length Of Strip Light | Mounting Speed: | 250000CPH |
Warranty: | 1 Year | Color: | White And Blue |
High Light: | Flexible Strip Mounting machine,Pick Place Machine for 5m Strip,Pick Place Machine for 10m Strip |

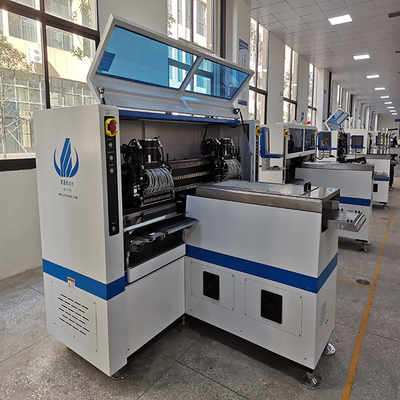

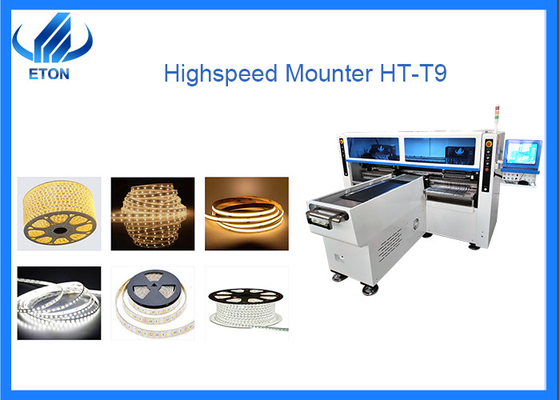

ETON 68-Feeder Station Fastest Pick and Place Machine for 5m/10m/50m Flexible Strip Mounting
1. Description

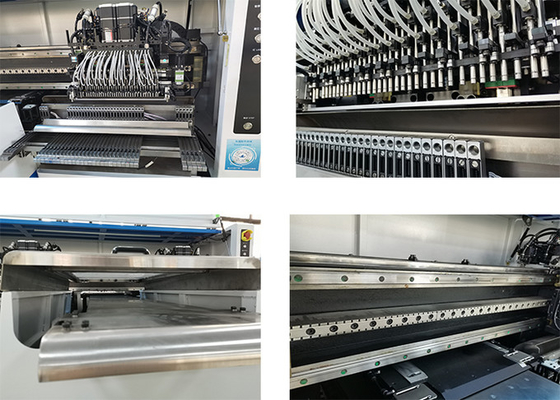

In order to meet the needs of customers to reduce costs and improve production efficiency, ETON has designed a 68 head SMT LED machine. ETON uses high-end magnetic linear motors and servo motors, which will achieve high speed and high stability. This is a cost-effective SMT LED machine suitable for mounting products such as lamp tubes and panel lights.
2. Machine techincal parameter
Product name | Mounting machine |
Model | HT-T9 |
PCB size(mm) | Max:250*any length |
PCB thickness | 0.5-1.5mm |
Mounting component height | <= 5 mm |
Mounting precision | ± 0.02 mm |
No.of camera | 5 PCS |
No.of nozzles | 68 PCS |
No.of feeders station | 68 PCS |
Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
Feeding way | Electric feeder with double motor |
3.The layout of smt production line
Eton high speed pick and place machine T9 is mounting for flexible strip, as 5m, 10m, 50m or any length. For the convenient way for production while it is better to use semi automatic line for mounting.
4. Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
5. Shipping and Delivery
1.Land transportation: suitable for inland countries and it is affordable;
2.Air freight: for urgent good, and it is the most expensive transportation way;
3.Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
6. Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
7. Certificates
Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
8. FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q5: What is your delivery date?
A5: The delivery date is about 20 days upon the full payment.
