Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-T9 |
|---|---|---|---|
| Application: | Any Length Of Strip Light | Mounting Speed: | 250000CPH |
| Warranty: | 1 Year | Color: | White And Blue |
| High Light: | Fastest Pick And Place Machine CCC,25w CPH SMT Mounter Machine,Roll To Roll SMT Mounter machine |
||

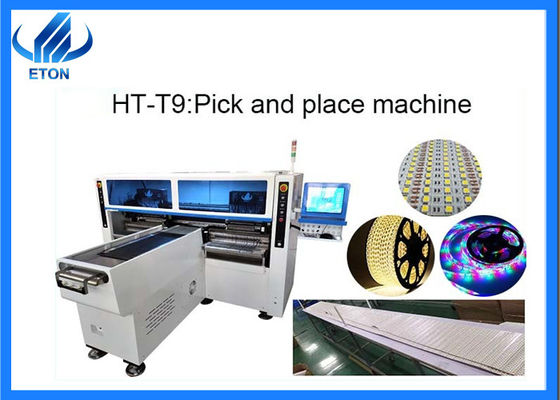

ETON 68-Feeder Station Fastest Pick and Place Machine for 5m/10m/50m Flexible Strip Mounting
1. Description
In order to meet the needs of customers to reduce costs and improve production efficiency, ETON has designed a 68 head SMT LED machine. ETON uses high-end magnetic linear motors and servo motors, which will achieve high speed and high stability. This is a cost-effective SMT LED machine suitable for mounting products such as lamp tubes and panel lights.
2. Machine techincal parameter
| Product name | Mounting machine |
| Model | HT-T9 |
| PCB size(mm) | Max:250*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.02 mm |
| No.of camera | 5 PCS |
| No.of nozzles | 68 PCS |
| No.of feeders station | 68 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Electric feeder with double motor |
3.The layout of smt production line
Eton high speed pick and place machine T9 is mounting for flexible strip, as 5m, 10m, 50m or any length. For the convenient way for production while it is better to use semi automatic line for mounting.
Company advantages
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. with over 10 years experience in SMT machine. Rich experience and professional in SMT machine. ETON is a manufacturing and process solution provider focusing on R&D, Production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The machine update and update, has a high stability.
ETON advantage: Strong manufacturing capabilities,Product,Patents and Honor,Five star service,Large market share,Exhibition,Packing and Delivery
5. Shipping and Delivery
1.Land transportation: suitable for inland countries and it is affordable;
2.Air freight: for urgent good, and it is the most expensive transportation way;
3.Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
7. The advantages of SMT patches are as follows:
1. Small size and light weight
The volume and weight of SMT components are only about 1/10 of those of traditional plug-in components, which is convenient for mounting. Generally, after SMT chip processing, the volume of electronic products can be reduced by 40% to 60%, while the weight can also be reduced by 60% to 80%.
2. Increased efficiency and reduced costs
SMT patch processing is easy to achieve automation, improve production efficiency, save materials, energy, equipment, manpower, time, etc., and reduce costs by 30% to 50%.
3. High reliability and strong seismic resistance
4.Good high-frequency characteristics, reducing electromagnetic and radio frequency interference
5. Low solder joint defect rate
6. High mounting density
8. FAQ
1. If there is a problem with the machine,can it be repaired?
A: Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
2. Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
3. Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
