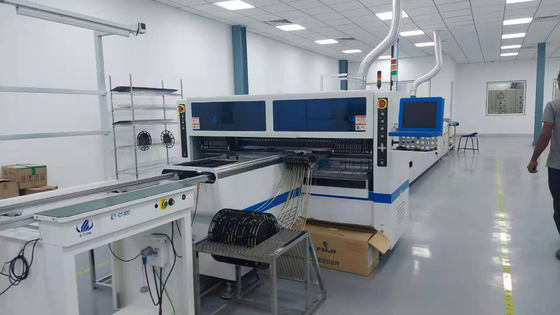

Magnetic linear motor dual arm smt mounter 250000CPH fastest pick and place machine

Magnetic linear motor dual arm smt mounter 250000CPH fastest pick and place machine

Machine main features

1.Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.

2.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.

3.Exclusive patent technology: Group to take and group to mount.

4. 5 cameras, 2 feeder debugging cameras, 2 nozzle debugging cameras, one Mark camera, high placement accuracy.

5.The mounting speed reached 200000~250000CPH.

Machine main parameter

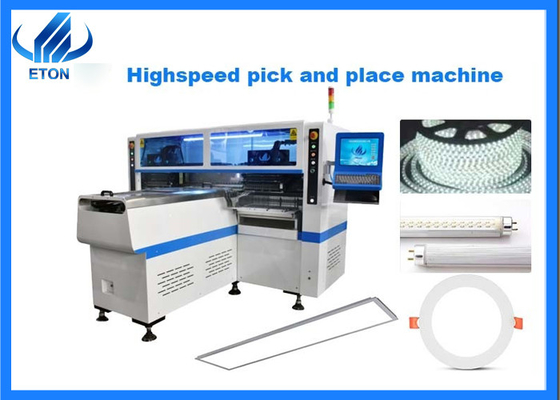

Application

It is suitable for mounting 0.5m,1m, 1.2m hard light board or flexible strip. It can produce

Linear products such as lamp tube, panel light, display screen and so on.

Five precautions for SMT equipment

1. Pay attention to the upper board: When the board is installed, it should be parallel to the track and cannot be placed crookedly.

2. Pay attention to the machine alarm signal, deal with it in time or notify engineers and technicians to deal with it

3. Maintenance and handling of the fault site: interrupt all operations of the equipment, and promptly notify engineers and technicians for handling.

SMT Production Line

We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.

Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.

Pick and place machine: Mount the electronic component at the specified position on the PCB.

Reflow oven: Melt the solder paste and fix it to the mounting element.

Single conveyor: Inspect the quality of assembly and welding to cushion the production line.

Company profile

Shenzhen Eton Automation Equipment Co., Limited is a professional manufacturer focusing on pick and place machine and peripheral equipment.

We have 10-year experience in SMT machine, with unique understanding of SMT technology, we provide long-term professional services to domestic and foreign electronic company, leading SMT equipment technologies.

With good quality, competitive price, easy operation. Our products are very popular in SMT.

Up to now, our products are already sold in many countries such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil. We will continue to make great efforts to satisfy the customers' requirement.

Packages

Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:

FAQ

Q: If machine have any problem after I receive it , how can I do?

A: During the warranty period, we will replace it for you free, or we can arrange a process engineer to repair it for free

Q:What are your advantages?

A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

What’s the terms of payment? What about the trade term?

T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.

what’s the minimum quantity of an order for your company?

1 set machine are welcomed to order, mixed orders are also welcomed.
