Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Mounting Speed: | 40000 CPH | Feeders: | 28 |
| Application: | 1.2m Rigid Pcb And 1m FPCB | Local Service: | India, Egypt, Vietnam |
| High Light: | High Intelligence LED Mounting Machin,LED Mounting Machine 40000 CPH,High Intelligence SMT Mounting Machine |
||

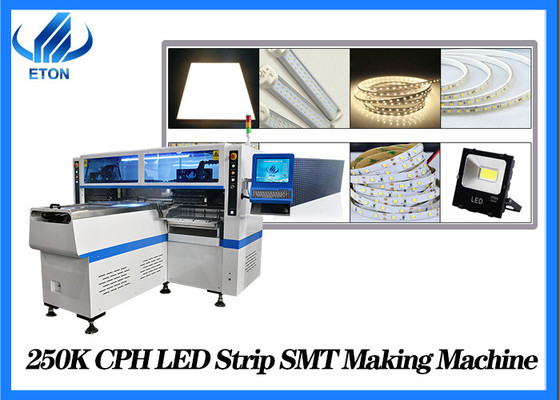

High Precision SMT LED Mounting Machine 250000CPH pick and place machine
Technical Parameter
| Dimension | Length | 2700mm |
| Width | 2300mm | |
| Height | 1550mm | |
| Total weight | 1700kg | |
| PCB | Length Width |
Max:1200*330mm |
| Thickness | 0.5-5mm | |
| Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount. | |
| Vision system | No.of camera | 5 PCS |
| Feature of camera | Vision alignment,MARK correction | |
| Mounting precision | ±0.02mm | |
| Mounting height | ≤5mm | |
| Mounting speed | 250000CPH | |
| Feeder station | 68 PCS | |
| Nozzles | 68 PCS | |
| components | LED3017,3020,3528,5050 and resistor,capacitor,bridge rectifiers. |
Application production&component
The mahcine mainly mounting linear produce,such as tubes, flexible strips, panel lights, display screens,etc.
Honor client
ETON with more than 10 years experience in SMT LED manufacturer are our partners in China.
Some details of the machine
Service
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Related SMT machine:
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing.
FAQ
1. Is engineer free for machine install ?
A: Yes, we will sent engineer to your factory for machine free install and training once you buy our machine.
2. Is your machine suitable for manufacturing LED Bulb/Panel light/Lens/Display/Flexible strip light/etc?
A: Yes, SMT Machine is widely applied to all kinds of led lighting and electrical board. Suitable for mounting/printing led
chip3014/3528/5050/etc,0402/0603/0805 resistor, capacitor, transformer, bridge, etc
3.Do you have led chip mounter machine?
A: Yes, ETON as the largest manufacturer of SMT Machine in China. We own more than 50000 square meters industry park in Jiangxi city, China. Set office in Shenzhen, Zhongshan, Zhejiang, India, Egypt, etc. We provide fellow machines:
1. High-speed pick and place machine for led lighting
2. Multifunctional pick and place machine for all kinds of lighting and electrical board
3. Automatic Stencil Printer machine
4. Semi-automatic Stencil Printer machine
5. Single conveyor machine
6. Double rail conveyor machine
7. Vibrator plate for lens/transformer/Capacitor/etc
8. 8mm/12mm/16mm/24mm electrical feeder
9. Eight zones reflow oven
10. PCB cleaning machine
11. Solder paste mixer
12. Loader machine
13. Unloader machine
14. Whole SMT Line solution
Etc……
4. How about the operating language ?
Our machine support Chinese/English language.
