Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
Mounting Speed: | 250000 CPH | Feeders: | 68 |
Nozzles: | 68 | Tape Width: | 24mm,8mm,12mm |
High Light: | 250000 Cph Fastest Pick And Place Machine,LED Strip Fastest Pick And Place Machine,LED Strip Production Line |

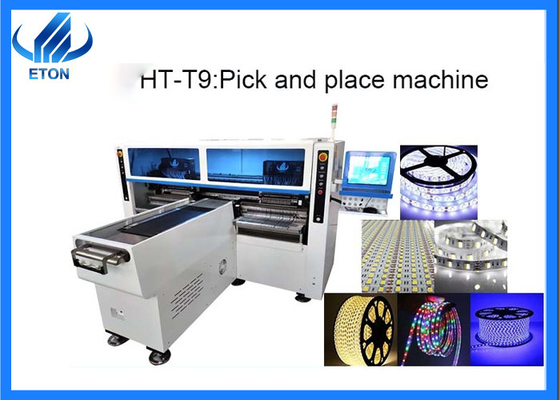

Fast LED Strip Mounting Machine HT-T9 250000 Cph in strip production line
Technical parameter
Model | HT-T9 |
Dimension | |
Length | 3100mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB | |
PCB Length Width | 250mm*any length |
PCB Thickness | 0.5-1.5mm |
PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
Mounting Mode | Group picking and separately placing |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera | 5 PCS ( Digital camera) |
Vision alignment, MARK correction | |
Repeat mounting Precision | ±0.02mm (Repeat precision) |
Mounting Height | ≦5mm |
Mounting Speed | 200000~250000CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Space | 0.5mm |
No. of Feeders Station | 68 PCS |
No. of head | 68 PCS |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Operating Environment | 23℃±3℃ |
Conveyor transmission | Max Length :1000 mm |
Transmission speed | >500mm/sec |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
Positioning Way | Optical |
Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Feeding way | Electric feeder with double motor |
