Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 250000 CPH |
| Usage: | 100m Strip Making Machine | Feeders: | 68 |
| High Light: | High Speed Pick and Place Machine 250k cph,Pick Place Machine Dual Arm,68 Feeders Pick Place Machine |
||

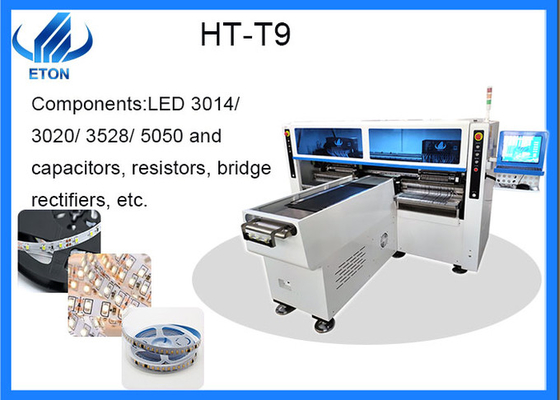

68 feeders 250k cph dual arm high speed pick and place mounter for flexible strip
Product introduction
T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
T9 is an ultra-high speed machine. Compared with t7s, T9 has higher production capacity, up to 250000cph per hour. The main difference is that the number of heads is different. T7s has only 34 heads, while T9 has 68 heads, resulting in different production capacity. Its PCB clamping method is also different from other high-speed machines. It adopts vacuum adsorption, cylinder splint and adjustable track width. Soft light strip - as the name suggests: it is made of software, and the PCB board itself is very thin. If it is not fixed, the PCB board will move. This affects the mounting.
Machine parameters
| length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode | Group picking and separately placing |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| No. of Camera | 5 PCS ( Digital camera) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
Company
China’s No. 1 SMT machine manufacturer
Focusing on SMT pick and place machine more than 15 years
The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
Exhibition
We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as
"Well-know brand" and many technology patents, and have rich experience
(more than 11 years) in LED light production line program.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
