Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 250000 CPH |
| Usage: | 100m Strip Making Machine | Feeders: | 68 |
| High Light: | High Speed Pick Place SMT Mounter,Flexible Strip mounter machine in smt,68 Feeders mounter machine in smt |
||

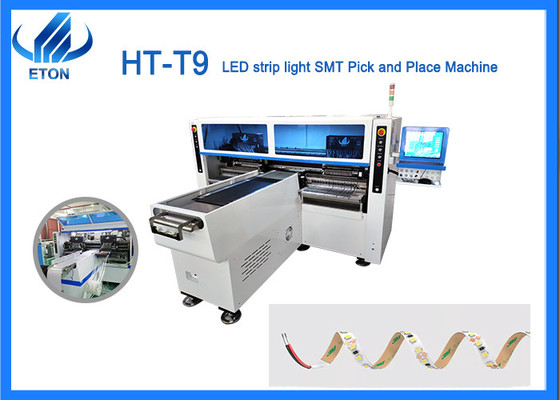

50 soft light strip PCB processing pick and place machine SMT production line
Technical parameter
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Other machine
We not only provide mounter, we also provide, loading machine, docking station, printing machine, reflow soldering, transplanter, AOI, SPI, etc.
Company profile
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Packages
Our package step is follow the blowing:
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
