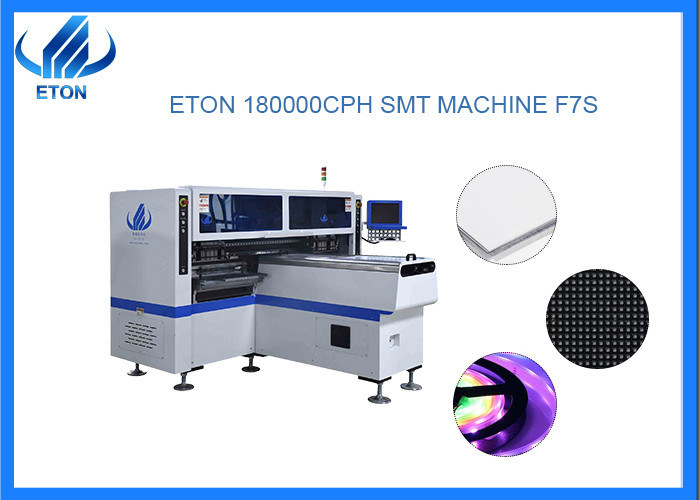

HT-F7S SMT Mounting Machine with 2-4 Types Materials & Group to take & mount
Product Description
- Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .
- Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
- Calibration automatically , high precision , available for RGB .
- Exclusive patent technology: Group to take and group to mount.
Technical parameter
| Model |
HT-F7S |
| PCB size(L* W) |
1200*330mm Min；100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows 7 |
| Software |
R&D Independently |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
FAQ
Q: Why choose us?
a: Best price & Best shipping & Best service
b: More than ten years of experience in research and development production and sales.
c:we have established overseas offices and local engineers in Egypt, Turkey, India,etc.
d: Patents: 9 invention patents, 12 software copyrights, 112 practical patents.
e: Free installation and training, software lifetime free upgrade,etc.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
