R&D Independently SMT Mounting Machine LED bulb assembly machine
Technical parameter

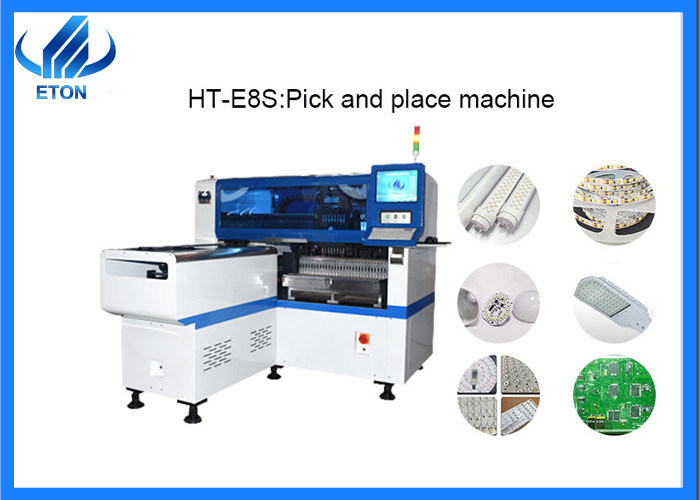

HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Components |
LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| Total Weight |
1700kg |
| Mounting Height |
<15mm |
| PCB Thickness |
0.5-5mm |
| Display |
Touch screen |
| Mounting Mode |
Group picking and separate placing,separate picking and separate placing |
| Software |
R&D independently |
| Position Camera |
Vision for the flight identification + MARK correction |
| Input Device |
Keyboard,Mouse |
| No. of Camera |
2 sets of imported camera |
| PCB Length Width |
Max:1200*350mm Min:100*100mm |
| Mounting repeat Precision |
±0.04mm chip |
| Length*Width*Height |
2550mm*1650mm *1550mm |
| Mounting Speed |
45000 CPH(optimum) |
| PCB Clamping |
Adjustable pressure pneumatic |
Machine application
Machine widely apply to mounting all kind of SMD components, like led bulb/panel/ down-light/street light/dob /driver/flood light/etc
1. All kinds of LED Lighting board: Bulb, Tube, Lens panel, Solar street light, Strip light, etc
2.Most of driver board: widely apply to mounting MOV, capacitor, 0603/0805/0402 resistor, SOP4/SOP6, Transformer, Terminal, etc
Company advantages
We had building a long-term partnership with some strong factories!
We specialize in this field for 20 years.
We have our own professional designers.
We have 50,000 square meters of industrial park.
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Certificates
ETON s not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of smt high speed placement machine, it has successfully developed a variety of cost effective smt high speed universal placement machines.
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
Related machine
We not only provide the pick and place machine, also provide the smt peripleral equipment, such as Loader machine, Conveyor machine, Stencil printer machine, Reflow oven machine, Unloader machine, Solder paste mixer, Roll to roll led strip light assembly machine ,AOI, SPI, etc.
FAQ
1. Why you choose ETON?
ETON has more than 11 years experience. ETON is in the leading position in the field of pick and place machine and commit to continuously providing the market with products and services that are “ more intelligent, more professional, more efficient, and lower consumption”.
2. Who are your main clients?
Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
3. Why choose us?
ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.
4. What about the package of the machine?
We use wooden boxes and vacuum packaging to ensure that the machine is in good condition.
5. How long is the period for delivery?
30 days after deposit.
