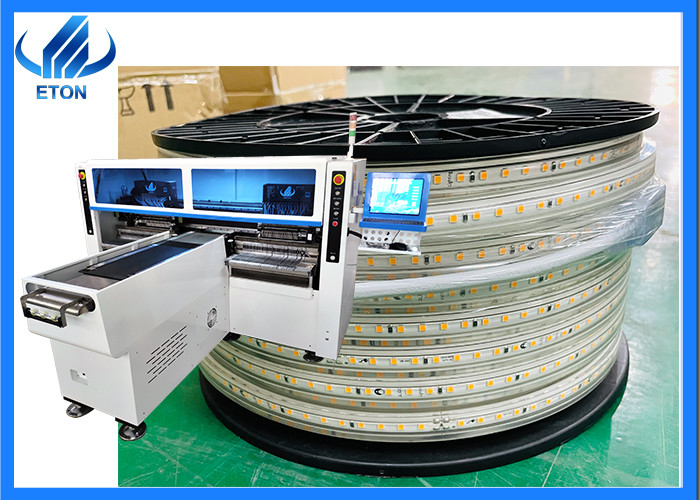

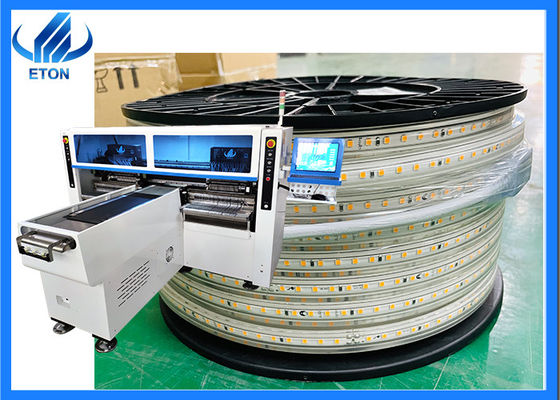

250000 CPH SMT Machine 68PCS Head Dual Arm pick and place machine
Product Description and Advantages
1.It has 68PCS head and the mounting speed can reach 250000CPH.
2.The maximum PCB size is 1200*330mm.
3.Calibration automatically, high precision,available for RGB.
4.Group to take and group to mount
5. It can produce tube, LED flexible strip, display, panel light etc.
6. Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers.
Specification
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Operating Environment |
23℃±3℃ |
| Conveyor Transmission |
Max Length :1200 mm |
| Transmission Speed |
>500 mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
SMT production line features
We can provide whole line solution if you want, we are very professional on SMT field.
The following is the semi-automatic production line of HT-T9 machine:
Company introduction
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 30 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Service
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Related SMT machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing.
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2. How about the operating software?
Our software is R&D independently by ourselves.
3. What about the mode of transport?
Both sea, air and road are OK.
4. How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).also can change to all of language.
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
Clients Projects
100M Strip Light SMT Production Line
ETON helped the client to plan the 100M production line, including the patch production
line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine - 24M assembly line - reflow oven - PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers. The client's project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.
