| Warranty: | 1 Year | Applicable Components: | 0805,0603,1206 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMT Production Line |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 500000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| High Light: | Fastest Pick And Place Machine 500000CPH,LED Fastest Pick And Place Machine,Flexible Strip Fastest Pick Place Machine |
||

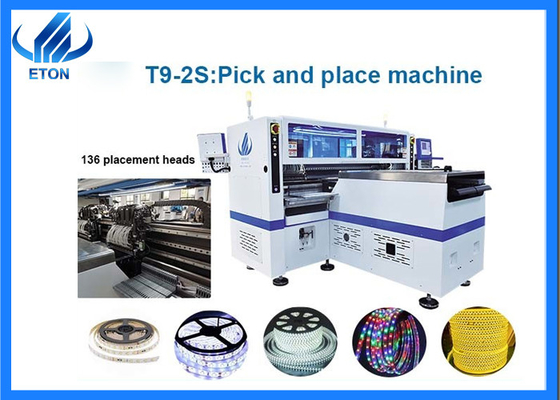

100m Led strip mounter 136 nozzles with 500K
Features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500000 CPH
Parameter
| Dimension (L*W*H) | 3454*3035*1777 mm |
| Total weight | 3100kg |
| PCB Length width | 250mm*any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| No.of feeders station | 136 PCS |
| No.of head | 136 PCS |
| Mounting speed | 500000 CPH |
| Components | LED3014/3020/3528/5050,Capacitance, resistance, bridge stack, etc |
| Operating environment | 9.6 KW |
LED Flexible Strip Production Process
| Step 1 | Loader Machine | Sending the FPCB roll to printer machine |
| Step 2 | Semi-automatic Stencil Printer | Printing the solder paste on the flexible PCB |
| Step 3 | Buffer Stage | Buffer and transport the flexible PCB to pick and place machine |
| Step 4 | Pick and Place Machine | Mounting LED chips and components on flexible PCB |
| Step 5 | Transportation Belt Line | Transport the flexible PCB to reflow oven |
| Step 6 | Reflow Oven | Heating the solder paste with FPCB to welding the components on FPCB |
| Step 7 | Unloader Machine | Rewinding the finished Flexible strip |
Advantage
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Service
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
* Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
* Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
* Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more
than 50 units/month
* Good and professional service. Provide engineer Door-to-door service, support video online training, video training share, free
replaced machine core part during warranty. And also we could provide professional SMT line solution.
