100m Led strip mounter 136 nozzles with 500K
SMT mounter for strip lighting
Product Description

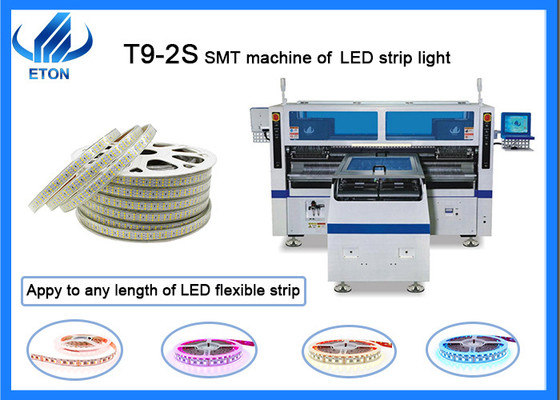

T9-2S SMT pick and place machine is specialized in producing LED wire-free infinite length flexible light strips.
The PCB size is 250mm wide * any length, whether you want to produce 5m/10m/100m or even longer, it can be applied.
In addition, this machine is a dual-module dual-track, the two systems are independently controlled, independent of each other, and do not affect each other.
In the configuration selection of the production line, a chip mounter and a reflow oven are shared. Under ideal conditions, the production capacity can reach 500,000 CPH, breaking the world record.
Parameter
| PCB size( Width*Length) |
250(± 10)mm*Any length |
| PCB thickness |
0.1 -0.5mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets |
| Repeat precision |
±0.05mm/Mounting speed |
| Mounting speed |
Double side:500000CPH,single side:250000CPH(Optimum speed) |
SMT equipment maintenance
TPM maintenance method is a maintenance method in which all members from managers to operators participate in an effort to establish a harmonious human-machine relationship (a bit like a "people-oriented" statement). It consists of the following 5 parts:
1. Autonomous maintenance
2. Personal progress to improve productivity and reduce 6 wastes
3. Planned maintenance system
4. Production process design and equipment management system
5. Education and training for continuous improvement In practice, it is more difficult.
But it can be summed up in one sentence: base maintenance on the operator, forming a tower structure that saves technicians time and has more time to deal with quality issues and improve production efficiency.
Packaing
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Customer's factory
1. LED bulb factory
2. LED display factory
3. LED Tube factory
4. LED Strip light factory
etc......
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, machine needs air supply.
Q3:This is the first time I use this kind of machine, is it easy to operate? We have English user manual and guide video to teach you how to use the machine.And also we'll arranger our overseas engineers to your factory for free installation and training.
Q4:How about the warranty? Provide one year warranty period. Outside the warranty period, we will have 1-2 free door-to-door services every year
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms; (3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping; (6)Send your order via express or by air or by sea.
