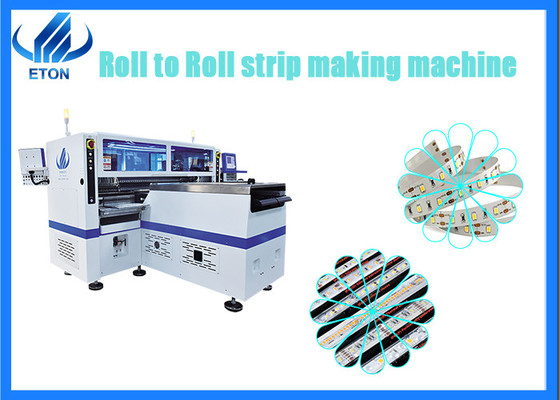

Automatic pcb mounting machine T9-2S for LED Strip roll to roll 500000 CPH
Parameter
| PCB size( Width*Length) |
250(± 10)mm*Any length |
| PCB thickness |
0.1 -0.5mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets |
| Repeat precision |
±0.05mm/Mounting speed |
| Mounting speed |
Double side:500000CPH,single side:250000CPH(Optimum speed) |
ETON Profile
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
* Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
* Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
* Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more
than 50 units/month
* Good and professional service. Provide engineer Door-to-door service, support video online training, video training share, free
replaced machine core part during warranty. And also we could provide professional SMT line solution.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Packaing
Step 1: Wrap the machine with film first
Step 2: Pack with foam cotton
Step 3: Vacuum bag packaging and vacuuming
Step 4: The film is then wrapped around and fixed
Step 5: Fix the four feet with foot cups to prevent them from slipping during transportation
Step 6: Start packing in wooden boxes, one machine and one wooden box.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Customer's factory
1. LED bulb factory
2. LED display factory
3. LED Tube factory
4. LED Strip light factory
etc......
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
