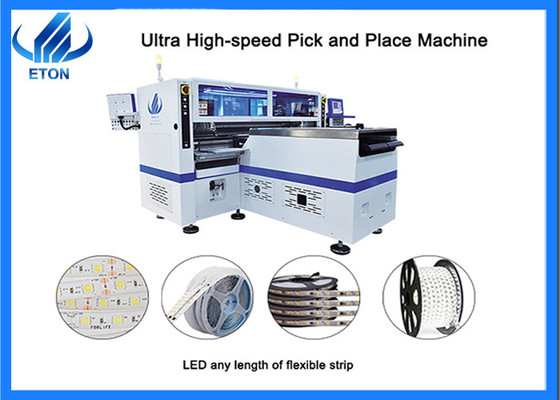

136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry

136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry
136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry

Large Image :  136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: T9-2S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Applicable Components: 0805,0603,1206
Name: SMT Pick And Place Machine,SMT Chip Mounter Application: SMT Production Line
Condition: New,100% Original,Brand-new Mounting Speed: 500000 CPH
Type: Automatic Usage: SMT Mounting Machine,LED
Highlight:

LED Strip Production Pick Place Machine

,

LED Industry Fastest Pick And Place Machine

,

136 Nozzle Pick And Place Machine

100m Led strip mounter 136 nozzles with 500K



Parameter

Dimension (L*W*H) 3454*3035*1777 mm
Total weight 3100kg
PCB Length width 250mm*any length
PCB thickness 0.1-0.5mm
PCB clamping Vacuum adsorption, cylinder splint, adjustable track width
No.of feeders station 136 PCS
No.of head 136 PCS
Mounting speed 500000 CPH
Components LED3014/3020/3528/5050,Capacitance, resistance, bridge stack, etc
Operating environment 9.6 KW



LED Flexible Strip Production Process

Step 1 Loader Machine Sending the FPCB roll to printer machine
Step 2 Semi-automatic Stencil Printer Printing the solder paste on the flexible PCB
Step 3 Buffer Stage Buffer and transport the flexible PCB to pick and place machine
Step 4 Pick and Place Machine Mounting LED chips and components on flexible PCB
Step 5 Transportation Belt Line Transport the flexible PCB to reflow oven
Step 6 Reflow Oven Heating the solder paste with FPCB to welding the components on FPCB
Step 7 Unloader Machine Rewinding the finished Flexible strip


SMT Applications industry
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

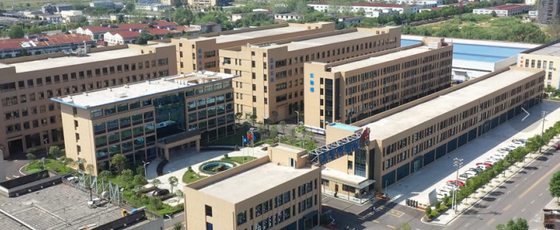

Company profile

Shenzhen ETON Automation Equipment Co., Ltd., has devoted itself to researching SMT placement machine and its peripheral equipment for 14 years. The company also has a branch in Jiangxi Province. The total area reaches 50,000 square meters and has the largest industrial park.

136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry 0



Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.



Client workshop

We have many big clients in India, Turkey and many countries.

In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.

In Turkey: ACK, KENDAL, KING LED are one of our large customers.

In Vietnam: RangDong, TAMKIM are one of our large customers.

In Egypt: UNISTAR is one of our large customers.

In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers



Customer's factory

1. LED bulb factory

2. LED display factory

3. LED Tube factory

4. LED Strip light factory

etc......

136 Nozzle Fastest Pick And Place Machine for LED Strip Production in LED Industry 1



FAQ

Q: What’s your delivery time?

A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.



Q: It’s hard to use the machine?

A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.



Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free of charge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
