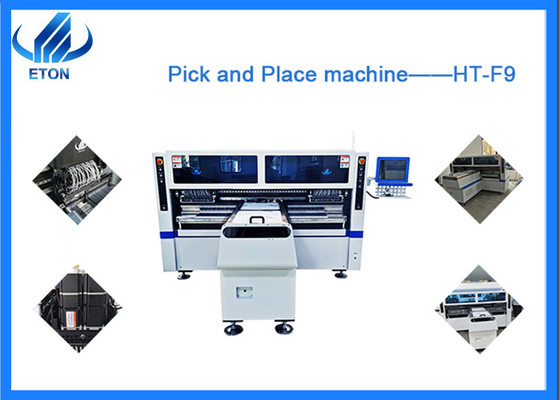

100m Led strip mounter 136 nozzles with 500K
Parameter
| Dimension (L*W*H) |
3454*3035*1777 mm |
| Total weight |
3100kg |
| PCB Length width |
250mm*any length |
| PCB thickness |
0.1-0.5mm |
| PCB clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| No.of feeders station |
136 PCS |
| No.of head |
136 PCS |
| Mounting speed |
500000 CPH |
| Components |
LED3014/3020/3528/5050,Capacitance, resistance, bridge stack, etc |
| Operating environment |
9.6 KW |
LED Flexible Strip Production Process
| Step 1 |
Loader Machine |
Sending the FPCB roll to printer machine |
| Step 2 |
Semi-automatic Stencil Printer |
Printing the solder paste on the flexible PCB |
| Step 3 |
Buffer Stage |
Buffer and transport the flexible PCB to pick and place machine |
| Step 4 |

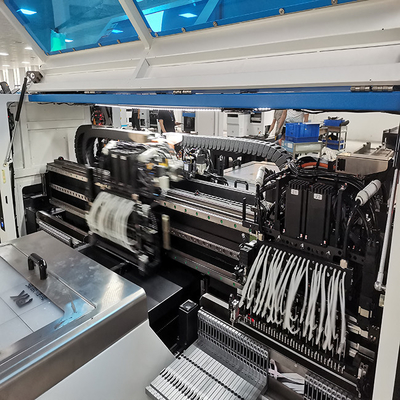

Pick and Place Machine |
Mounting LED chips and components on flexible PCB |
| Step 5 |
Transportation Belt Line |
Transport the flexible PCB to reflow oven |
| Step 6 |
Reflow Oven |
Heating the solder paste with FPCB to welding the components on FPCB |
| Step 7 |
Unloader Machine |
Rewinding the finished Flexible strip |
SMT Applications industry
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.
Company profile
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Client workshop
We have many big clients in India, Turkey and many countries.
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: RangDong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers.
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
FAQ
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free of charge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
